Q

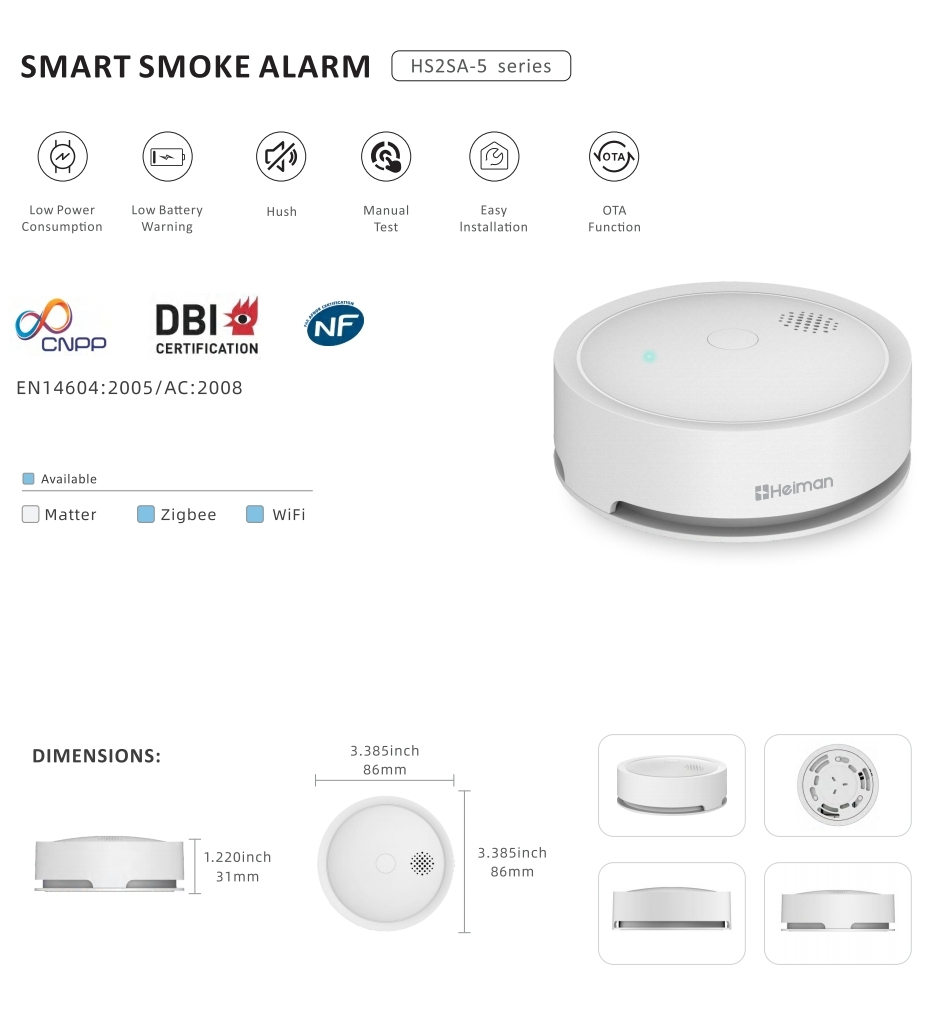

Smoke Fire Alarm HS2SA-5 series

SPECIFICATION

Model

HS2SA-5-EFA

HM2SA-5W-T

HM2SA-5S-T

WS2SA-5

Working Voltage

3V (1 × CR123A / CR17335 Lithium Battery)

3V (1 × CR123A / CR17335 Lithium Battery)

3V (1 × CR123A / CR17335 Lithium Battery)

3V (1 × CR123A / CR17335 Lithium Battery)

Wireless Protocol

Zigbee 3.0

433MHz/868MHz

/

WiFi 2.4GHZ

Visual Alarm Signal

Red LED Indicator

Red LED Indicator

Red LED Indicator

Red LED Indicator

Sound Level

≥85 dB (at 3 m straight ahead)

≥85 dB (at 3 m straight ahead)

≥85 dB (at 3 m straight ahead)

≥85 dB (at 3 m straight ahead)

Operating Temperature

0°C ~ +55°C

0°C ~ +55°C

0°C ~ +55°C

0°C ~ +55°C

Operating Humidity

≤95% RH (Non-condensing)

≤95% RH (Non-condensing)

≤95% RH (Non-condensing)

≤95% RH (Non-condensing)

Dimensions

Φ86 × H31 mm

Φ86 × H31 mm

Φ86 × H31 mm

Φ86 × H31 mm

Mounting

Wall Mounting / Ceiling Mounting

Wall Mounting / Ceiling Mounting

Wall Mounting / Ceiling Mounting

Wall Mounting / Ceiling Mounting

Battery Life

7 years

10 years

10 years

5 years

Certification

CE、DBI

CE、Q-Label、DBI

CE、Q-Label、DBI

CE、Q-Label、DBI

Smoke Fire Alarm HS2SA-5 series

SPECIFICATION
WORKING VOLTAGEDC3V(Lithium Battery)
VISUAL ALARM SIGNALRed LED indicator
SOUND LEVEL≤85dB/3m
WORKING TEMPERATURE0°C~55°C
WORKING HUMIDITY≤95%RH(no condensation)
MOUNTINGWall mounting or ceiling mounting
BATTERY LIFE10 years /5 years

DOP-2SA series DECLARATION OF PERFORMANCE DBI:https://www.heimantech.com/product/common/upload/2026/09/03/20260903858485T.pdf
