Model |
HS1SA-M |
HS1SA-E |
HS1SA |
|
Power Supply |
DC 3V (1 × CR123A Lithium Battery) |
DC 3V (CR17335 / CR123A Lithium Battery) |
DC 3V (CR17335/CR123A Lithium Battery) |
|
Battery Life |
5 years (Replaceable Battery) |
3-5 years (Replaceable Battery) |
10 years |
|
Wireless Protocol |
Matter over Thread |
ZigBee |
/ |
|
Frequency |
2.4 GHz – 2.48 GHz |
2.4 GHz – 2.48 GHz |
/ |
|
Wireless Range |
Up ～ 60 m (Open Area) |
Up ～ 100 m (Open Area) |
/ |
|
Max. RF Power |
8.17 dBm |
6 dBm |
/ |
|
Alarm Indicator |
Red LED |
Red LED |
Red LED |
|
Sound Level |
≥85 dB (at 3 m straight ahead) |
≥85 dB (at 3 m straight ahead) |
≥85 dB (at 3 m straight ahead) |
|
Operating Temperature |
-10°C ～ +50°C |
-10°C ～ +50°C |
-10°C ～ +50°C |
|
Operating Humidity |
≤95% RH(Non-condensing) |
≤95% RH (Non-condensing) |
≤95% RH (Non-condensing) |
|

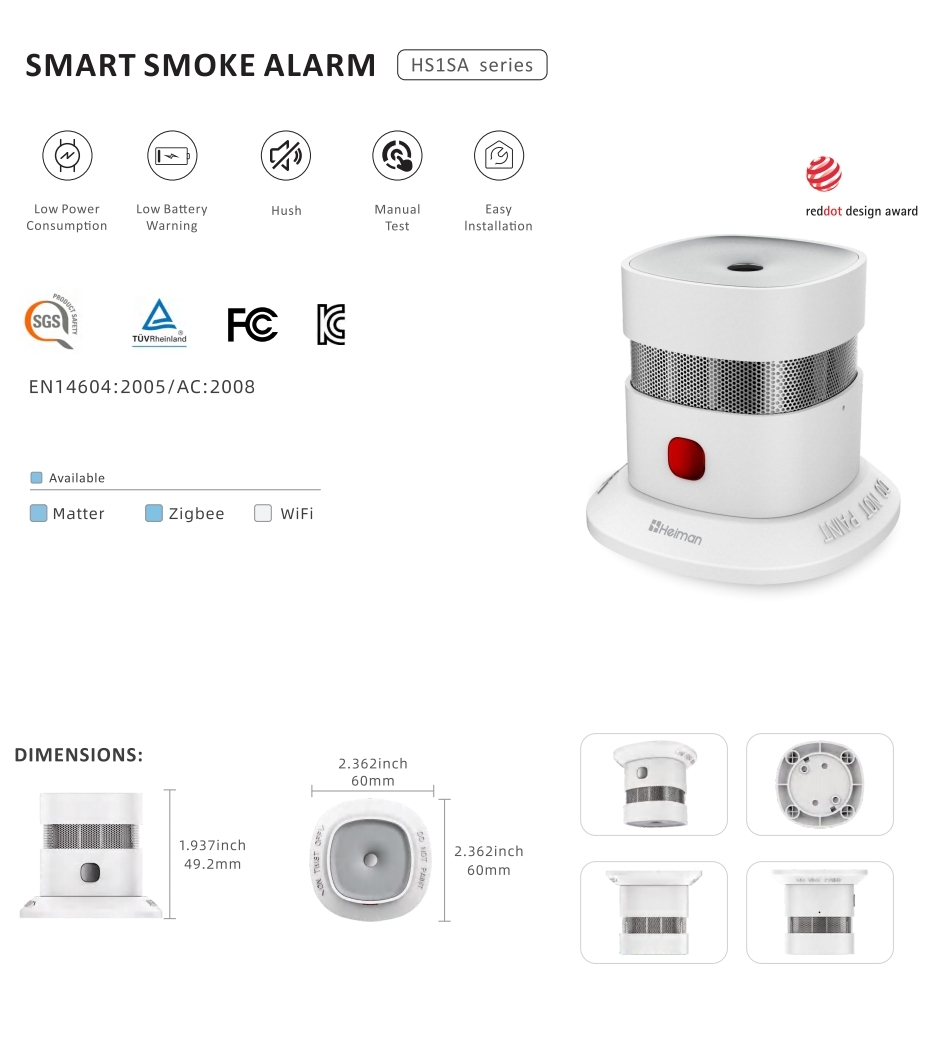

Dimensions |
60×60×49.2 mm |
60×60×49.2 mm |
60×60×49.2 mm |
|
Certification |
CE、UKCA、DBI |
CE、UKCA、DBI |
CE、KC |
| WORKING VOLTAGEDC3V(Lithium Battery) |
| SOUND LEVEL≥85dB/3m |
| WIRELESS NETWORKING DISTANCE≤70m (in the open area) |
| WORKING ENVIRONMENT-10°C~50°C |
| WORKING HUMIDITY≤95%RH(no condensation) |
Heiman Matter Smoke Alarm HS1SA-M Add to Apple Home(via Matter)
DOP-HS1SA HS3SA DECLARATION OF PERFORMANCE 2024 TUV.pdf：https://www.heimantech.com/product/common/upload/2024/10/24/20241024121214vn.pdf
DoC-DoC-HS1SA-Z HS1SA-E HS1SA-M.pdf：https://www.heimantech.com/product/common/upload/2024/12/18/20241218150816Oe.pdf
DoC-HS1SA-Z HS1SA-E HS1SA-M：https://www.heimantech.com/product/common/upload/2025/08/09/20250809100613XQ.pdf
HS1SA DECLARATION OF PERFORMANCE(certificated by DBI).pdf：https://www.heimantech.com/product/common/upload/2026/07/28/20260728113221Do.pdf
