Smart Mini Smoke Sensor Heiman HS1SA series
|
Model |
HS1SA-M |
HS1SA-E |
HS1SA |
|
Power Supply |
DC 3V (1 × CR123A Lithium Battery) |
DC 3V (CR17335 / CR123A Lithium Battery) |
DC 3V (CR17335/CR123A Lithium Battery) |
|
Battery Life |
5 years (Replaceable Battery) |
3-5 years (Replaceable Battery) |
10 years |
|
Wireless Protocol |
Matter over Thread |
ZigBee |
/ |
|
Frequency |
2.4 GHz – 2.48 GHz |
2.4 GHz – 2.48 GHz |
/ |
|
Wireless Range |
Up ～ 60 m (Open Area) |
Up ～ 100 m (Open Area) |
/ |
|
Max. RF Power |
8.17 dBm |
6 dBm |
/ |
|
Alarm Indicator |
Red LED |
Red LED |
Red LED |
|
Sound Level |
≥85 dB (at 3 m straight ahead) |
≥85 dB (at 3 m straight ahead) |
≥85 dB (at 3 m straight ahead) |
|
Operating Temperature |
-10°C ～ +50°C |
-10°C ～ +50°C |
-10°C ～ +50°C |
|
Operating Humidity |
≤95% RH(Non-condensing) |
≤95% RH (Non-condensing) |
≤95% RH (Non-condensing) |
|

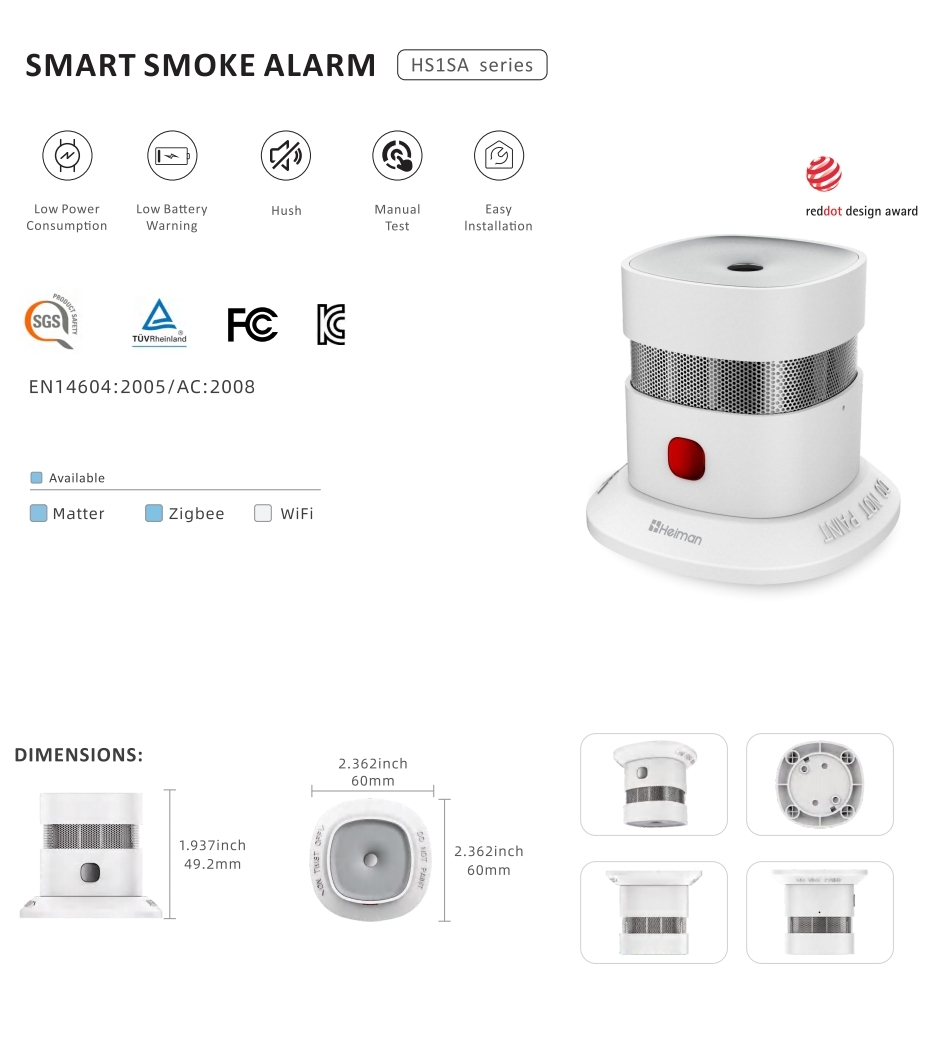

Dimensions |
60×60×49.2 mm |
60×60×49.2 mm |
60×60×49.2 mm |
|
Certification |
CE、UKCA、DBI |
CE、UKCA、DBI |
CE、KC |
-
Real-Time Smoke & Temp Monitoring
Detect smoke and abnormal temperature in real time.Integrated Smoke & Temperature Detection for comprehensive fire safety.Instant alerts when hazards are detected early.Reliable 24/7 protection for your home and family. -
Smart Scene Automation
Trigger automated scenes when smoke is detected.Activate ventilation, lighting or alert sequences.Seamlessly integrate with your smart home system.Enhance safety through intelligent automated responses. -

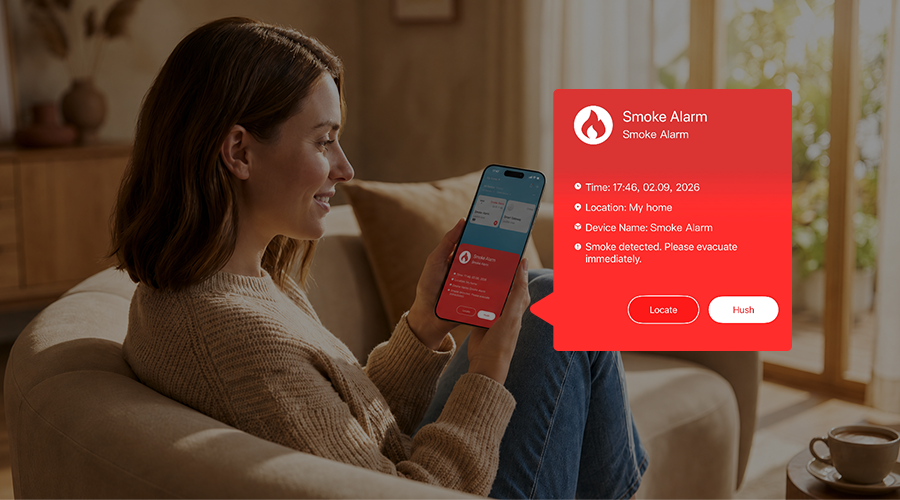

Remote Alert & Mute Control
Trigger alarms or mute remotely via mobile app.Control device status from anywhere with ease.Silence false alarms without climbing a ladder.Manage your home safety with convenient remote access. -

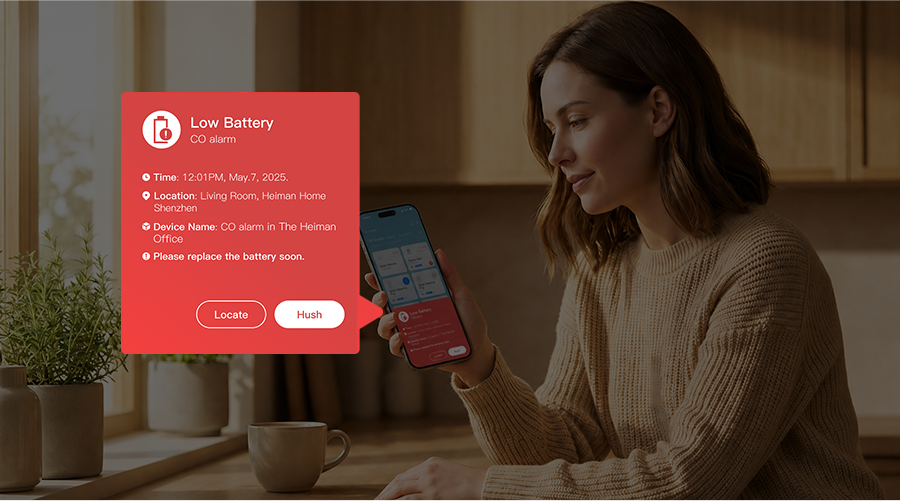

Low-Battery Alert &Replaceable Battery
Receive timely low-battery alerts and replace the battery when needed. The replaceable battery design makes maintenance simple and convenient, helping keep the smoke alarm powered and ready for continuous protection. -

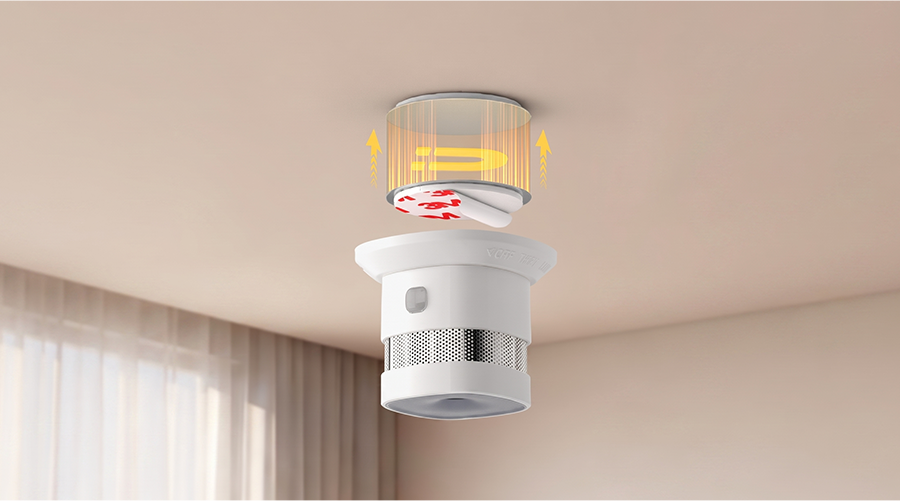

Flexible Dual Mounting Options
Choose screw or magnetic mounting as needed.Screw-fix for solid permanent placement.Magnetic mount for quick tool-free setup.Fits walls, ceilings and metal surfaces.No professional help required.Adapt freely to your home layout.
DOP-HS1SA HS3SA DECLARATION OF PERFORMANCE 2024 TUV.pdf：http://www.heimantech.com/product/common/upload/2024/10/24/20241024121214vn.pdf
DoC-DoC-HS1SA-Z HS1SA-E HS1SA-M.pdf：http://www.heimantech.com/product/common/upload/2024/12/18/20241218150816Oe.pdf
DoC-HS1SA-Z HS1SA-E HS1SA-M：http://www.heimantech.com/product/common/upload/2025/08/09/20250809100613XQ.pdf
HS1SA DECLARATION OF PERFORMANCE(certificated by DBI).pdf：http://www.heimantech.com/product/common/upload/2026/07/28/20260728113221Do.pdf
Heiman Matter Smoke Alarm HS1SA-M Add to Apple Home(via Matter)
