Heiman HM2SA-5 Series Photoelectric Smoke Alarm (Battery Powered)


The Heiman HM2SA-5 is a battery-powered photoelectric smoke alarm that detects smoke from smoldering fires early and alerts you with an 85 dB alarm, instant app notifications, and up to 10 years of battery life — giving homes, schools, nursing homes, hotels, and factories reliable, low-maintenance fire protection. This page explains who the HM2SA-5 series is for, why a photoelectric smoke alarm matters, how to install and maintain it, and answers the most common questions buyers ask before choosing a Heiman smoke detector.

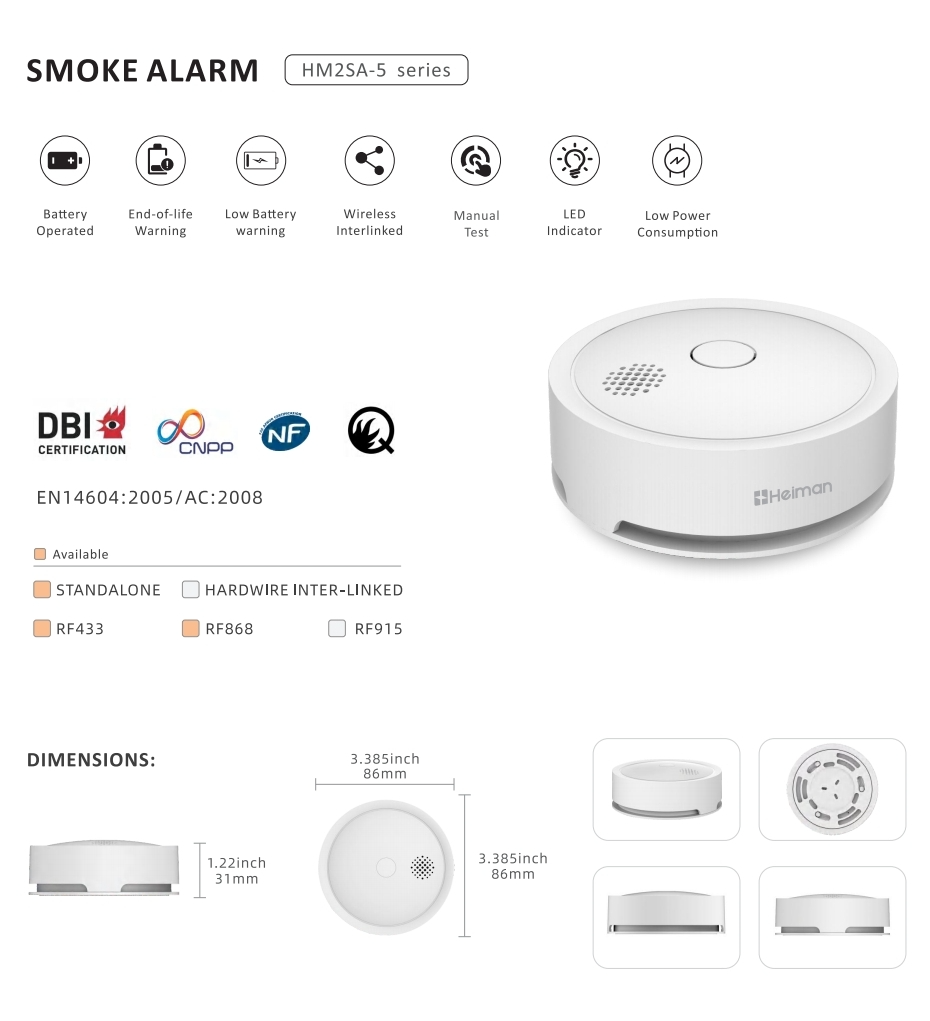

Specifications of Products:
SPECIFICATION

Model

HS2SA-5-EFA

HM2SA-5W-T

HM2SA-5S-T

WS2SA-5

Working Voltage

3V (1 × CR123A / CR17335 Lithium Battery)

3V (1 × CR123A / CR17335 Lithium Battery)

3V (1 × CR123A / CR17335 Lithium Battery)

3V (1 × CR123A / CR17335 Lithium Battery)

Wireless Protocol

Zigbee 3.0

433MHz/868MHz

/

WiFi 2.4GHZ

Visual Alarm Signal

Red LED Indicator

Red LED Indicator

Red LED Indicator

Red LED Indicator

Sound Level

≥85 dB (at 3 m straight ahead)

≥85 dB (at 3 m straight ahead)

≥85 dB (at 3 m straight ahead)

≥85 dB (at 3 m straight ahead)

Operating Temperature

0°C ~ +55°C

0°C ~ +55°C

0°C ~ +55°C

0°C ~ +55°C

Operating Humidity

≤95% RH (Non-condensing)

≤95% RH (Non-condensing)

≤95% RH (Non-condensing)

≤95% RH (Non-condensing)

Dimensions

Φ86 × H31 mm

Φ86 × H31 mm

Φ86 × H31 mm

Φ86 × H31 mm

Mounting

Wall Mounting / Ceiling Mounting

Wall Mounting / Ceiling Mounting

Wall Mounting / Ceiling Mounting

Wall Mounting / Ceiling Mounting

Battery Life

7 years

10 years

10 years

5 years

Certification

CE、DBI

CE、Q-Label、DBI

CE、Q-Label、DBI

CE、Q-Label、DBI

  • Heiman HM2SA-5 Series Photoelectric Smoke Alarm (Battery Powered)
  • Heiman HM2SA-5 Series Photoelectric Smoke Alarm (Battery Powered),360° Detection Smarter Accuracy

    360° Detection Smarter Accuracy

    360° smoke detection senses smoke from every direction, while intelligent dust self-learning adapts to environmental changes. Together, they help reduce interference and deliver more accurate, timely warnings, and they also reduce nuisance triggers that cause false alarms.
  • Heiman HM2SA-5 Series Photoelectric Smoke Alarm (Battery Powered),Ultra-Low Power 10-Year Battery Life

    Ultra-Low Power 10-Year Battery Life

    Engineered for ultra-low power consumption, the smoke alarm delivers up to 10 years of battery life.Long-lasting power keeps your alarm ready to protect, day and night, with less maintenance.

    * Some models feature a 10-year battery life
  • Heiman HM2SA-5 Series Photoelectric Smoke Alarm (Battery Powered),Remote Alerts — Stay Informed Anywhere

    Remote Alerts — Stay Informed Anywhere

    When smoke is detected, the alarm sends instant alerts to your smartphone via the app. Stay informed of potential fire risks remotely and respond quickly, even when you're away from home. Smart models can connect via Zigbee or Wi-Fi, and interconnected alarms communicate wirelessly with each other, so when one unit triggers, every connected alarm sounds together to alert occupants throughout the building.When smoke is detected, the alarm sends instant alerts to your smartphone via the app, so you can share the alert with family members and respond quickly, even when you're away from home.
  • Heiman HM2SA-5 Series Photoelectric Smoke Alarm (Battery Powered),Low Battery Warning

    Low Battery Warning

    Stay informed of the alarm's battery status with timely low-battery alerts. When the lithium battery is running low, the device and the app provide notifications, helping ensure the smoke alarm remains ready to protect.
  • Heiman HM2SA-5 Series Photoelectric Smoke Alarm (Battery Powered),Oversized Button for Easy Self-Test

    Oversized Button for Easy Self-Test

    Press the oversized button with a pole to verify full alarm functionality — test easily without climbing or removing the unit. The large design suits users of all ages, and models with app connectivity also include test and silence functions for convenient operation during false alarms.

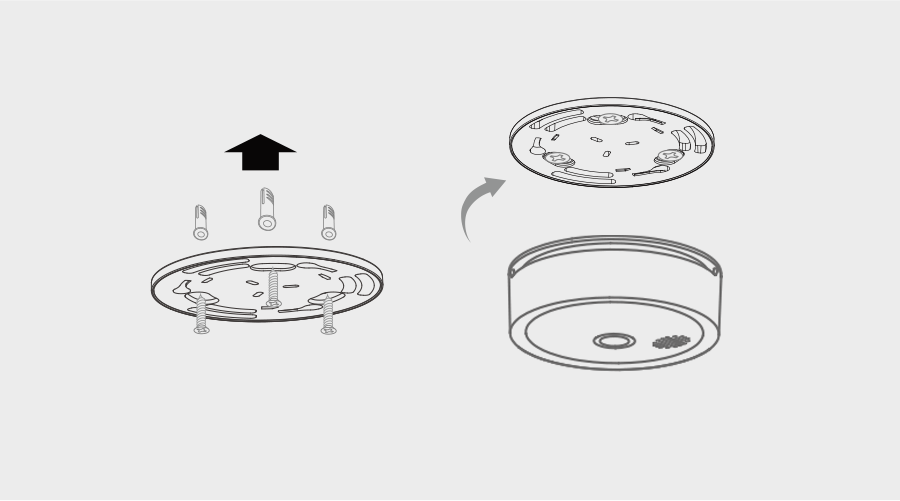

  • Heiman HM2SA-5 Series Photoelectric Smoke Alarm (Battery Powered),Flexible Installation Options

    Flexible Installation Options

    Choose the installation method that best suits your needs. Secure the alarm firmly with screws for a permanent installation, or use the magnetic mount for quick and convenient setup without drilling.

Certifications and Standards

Designed for the European Union market, the HM2SA-5 series is a wireless smoke alarm range that avoids the hassle of running cables through walls and ceilings.HEIMAN smoke alarms in the HM2SA-5 series carry CE marking and hold Q-Label and DBI certification, which are based on compliance with EN 14604, the European standard for smoke alarm performance. Heiman provides various fire safety products, including smoke alarms and CO detectors for residential use, and its smart home sensors are compatible with the wireless protocols needed for effective operation.



Who Is the Heiman HM2SA-5 Series For?

The HM2SA-5 series is designed for homeowners, landlords, facility managers, and safety officers who need dependable, certified fire detection without complex wiring. It suits families with children or elderly members who may not hear a distant alarm, owners of rental properties and nursing homes where remote monitoring saves lives, and hotels and factories that must verify alarm readiness with routine checks. Its oversized test button, tool-free magnetic mounting option, and long-life lithium battery make it an easy product to choose for users of all ages.



Why a Photoelectric Smoke Alarm Matters

Most fatal home fires start as slow, smoldering fires — from overheated wiring, cigarettes, or textiles — which produce thick smoke long before open flames appear. A photoelectric smoke alarm detects these large smoke particles far earlier than an ionization alarm, and photoelectric alarms are less prone to false alarms than ionization alarms caused by cooking fumes or steam. Smoke spreads fast: early detection gives occupants the minutes they need to escape. Fire safety compliance for residential buildings also includes adherence to local alarm installation regulations, and placing a certified alarm on every level and outside sleeping areas is one of the simplest, most effective ways to protect people and property.



Frequently Asked Questions



Q1: What is the Heiman HM2SA-5 photoelectric smoke alarm and how does it work?

A: The Heiman HM2SA-5 is a battery-powered photoelectric smoke alarm that uses a light-sensing chamber to detect smoke particles from smoldering fires. When smoke enters the chamber, the alarm triggers an 85 dB audible alert and a red LED indicator, and smart models send an instant notification to your phone.



Q2: Is a Heiman smoke detector better than an ionization smoke detector?

A: A Heiman smoke detector with photoelectric technology responds faster to smoldering fires — the most common type in homes — and photoelectric sensors are less prone to false alarms caused by cooking or steam, making them ideal for kitchens' adjacent areas, bedrooms, and hallways.



Q3: How often should I test my Heiman smoke alarm?

A: Press the test button once a month to verify the alarm sound and circuitry. The oversized button can be pressed with a pole, so you can check your Heiman smoke device without climbing or removing it from the ceiling.



Q4: What battery does the Heiman smoke alarm use, and how long does it last?

A: The HM2SA-5 series runs on a 3V CR123A / CR17335 lithium battery. Battery life depends on the model: up to 10 years on HM2SA-5W-T and HM2SA-5S-T, 7 years on HS2SA-5-EFA, and 5 years on the Wi-Fi model. The alarm sends low-battery alerts before power runs out.



Q5: Where should I install smoke detectors in my home?

A: Photoelectric smoke alarms are recommended for placement in key areas like bedrooms and hallways — install one on every level of your home, inside each bedroom, and outside every sleeping area. Avoid placing the alarm directly in kitchens or bathrooms where steam may cause false alarms.



Q6: What should I do if my Heiman smoke alarm gives false alarms?

A: First verify there is no real fire. False alarms are often caused by dust, steam, or cooking fumes. Use the silence function on smart models to hush the alarm temporarily, then clean the unit and check its placement.



Q7: Can Heiman smoke alarms interconnect and work with smart home systems?

A: Yes. Interconnected alarms in the series communicate wirelessly with each other, and smart models can use Zigbee 3.0 or Wi-Fi technology to integrate with smart home systems for remote monitoring and alerts.



Q8: How do I know my Heiman smoke alarm is still protecting me?

A: Check the red LED indicator, press the test button monthly, respond to low-battery warnings promptly, and replace the unit according to its service life.



Q9: Where can I buy the Heiman HM2SA-5 smoke alarm, and what should I consider before buying?

A: The HM2SA-5 series is sold through Heiman's official website and authorized distributors, and Heiman items may also be listed on major marketplaces such as Amazon — please verify the seller is authorized before you buy. Every buyer should consider three things before buying: the wireless protocol your home needs (Zigbee, Wi-Fi, or non-connected), the battery life of each model, and the number of rooms you plan to protect. Because this product offers multiple models and configuration options, confirm the exact item specifications and current price with Heiman's official customer service. If you are comparing options, read reviews from verified buyers to see how this smoke detector performs in real homes.



Q10: What should I check before installing my Heiman smoke alarm?

A: Start by taking the alarm out of the box and reading the instructions in the included user manual. Confirm the manufacturer name (Heiman), and check the model number and production date posted on the product label. Then plan your installation positions — one alarm on every level and outside every sleeping area — and press the test button after mounting. Following the instructions carefully takes only minutes and ensures your Heiman smoke alarm is ready to protect from day one.
