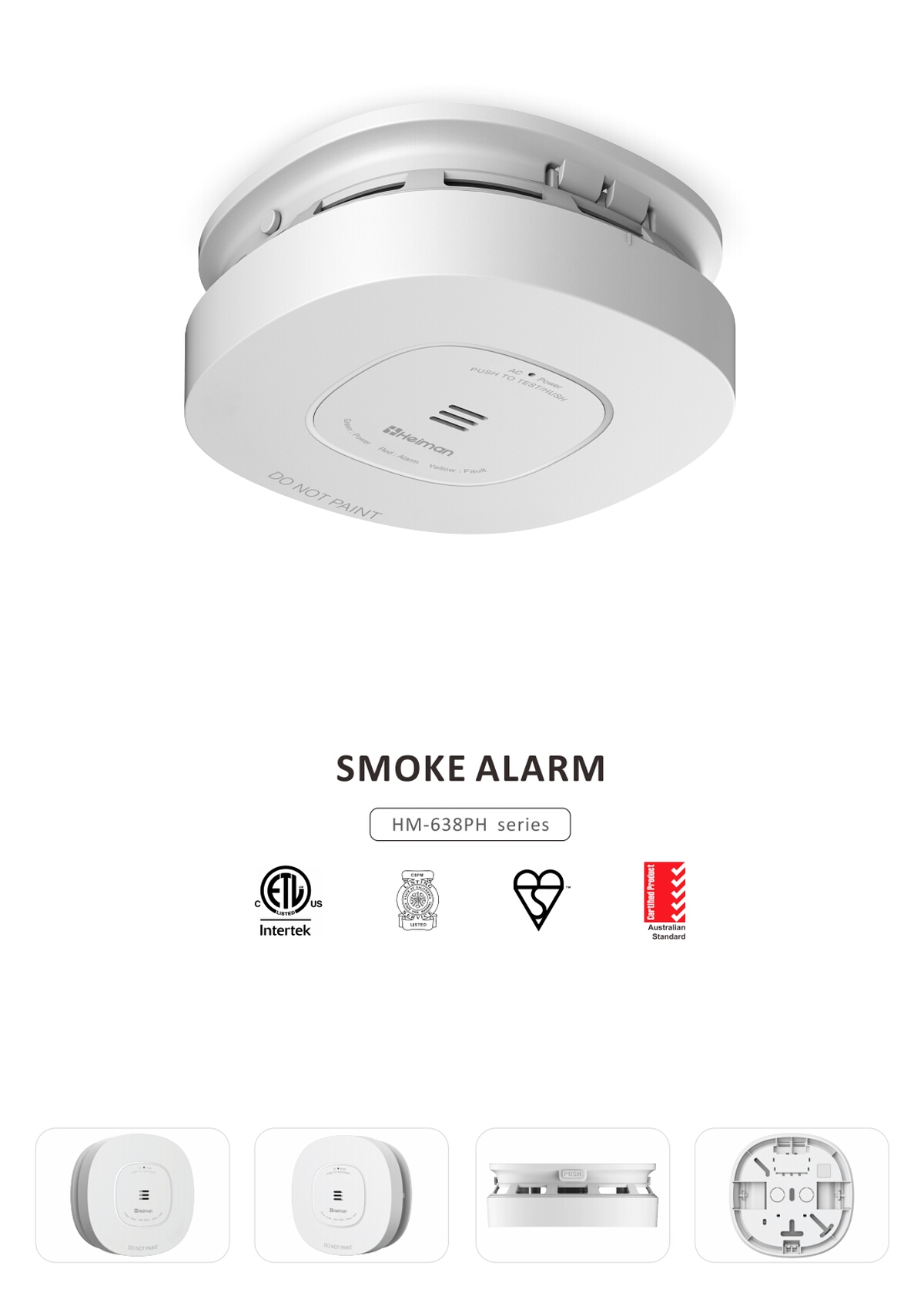

Heiman HM-638PHM-AC Interconnected Photoelectric Smoke Alarm |UL 217 10th Certified/Hardwired+Sealed 10 Years Battery Backup
|
Model |
HM-638PHW-AC |
HM-638PHW |
HM-638PHM-AC |
|
Power Supply |
220–240V(50Hz, 1.2W MAX) |
DC 3V, Built-in 10-Year Battery |
120V AC, 60Hz, with 1 × CR-2/3AZ Backup Battery |
|
Battery Life |
Built-in 10-Year Battery Backup |
10-Year Battery Backup |
10 years (Battery Not Replaceable) |
|
Transmit Power |
5.7 dBm |
5.7 dBm |
/ |
|
Wireless Protocol |
868 MHz |
433 MHz |
/ |
|
RadioProtocol |
SRD |
SRD |
/ |
|
Sound Level |
≥85 dB (at 3 m) |
≥85 dB (at 3 m) |
≥85 dB (at 10 ft) |
|
Operating Temperature |
0 °C ~ +50 °C |
0 °C ~ +50 °C |
40 °F (4.4 °C) ~ 100 °F (37.8 °C) |
|
Operating Humidity |
≤95% RH (Non-condensing) |
≤95% RH (Non-condensing) |
≤95% RH (Non-condensing) |
|
Wireless Interconnection |
Up ~ 40 Alarms Maximum |
Up ~ 40 Alarms Maximum |
/ |
|
Wired Interconnection |
Up ~ 20 Alarms over 250 m Maximum |
Up ~ 20 Alarms over 250 m Maximum |
Up ~ 20 Alarms over 250 m Maximum |
|

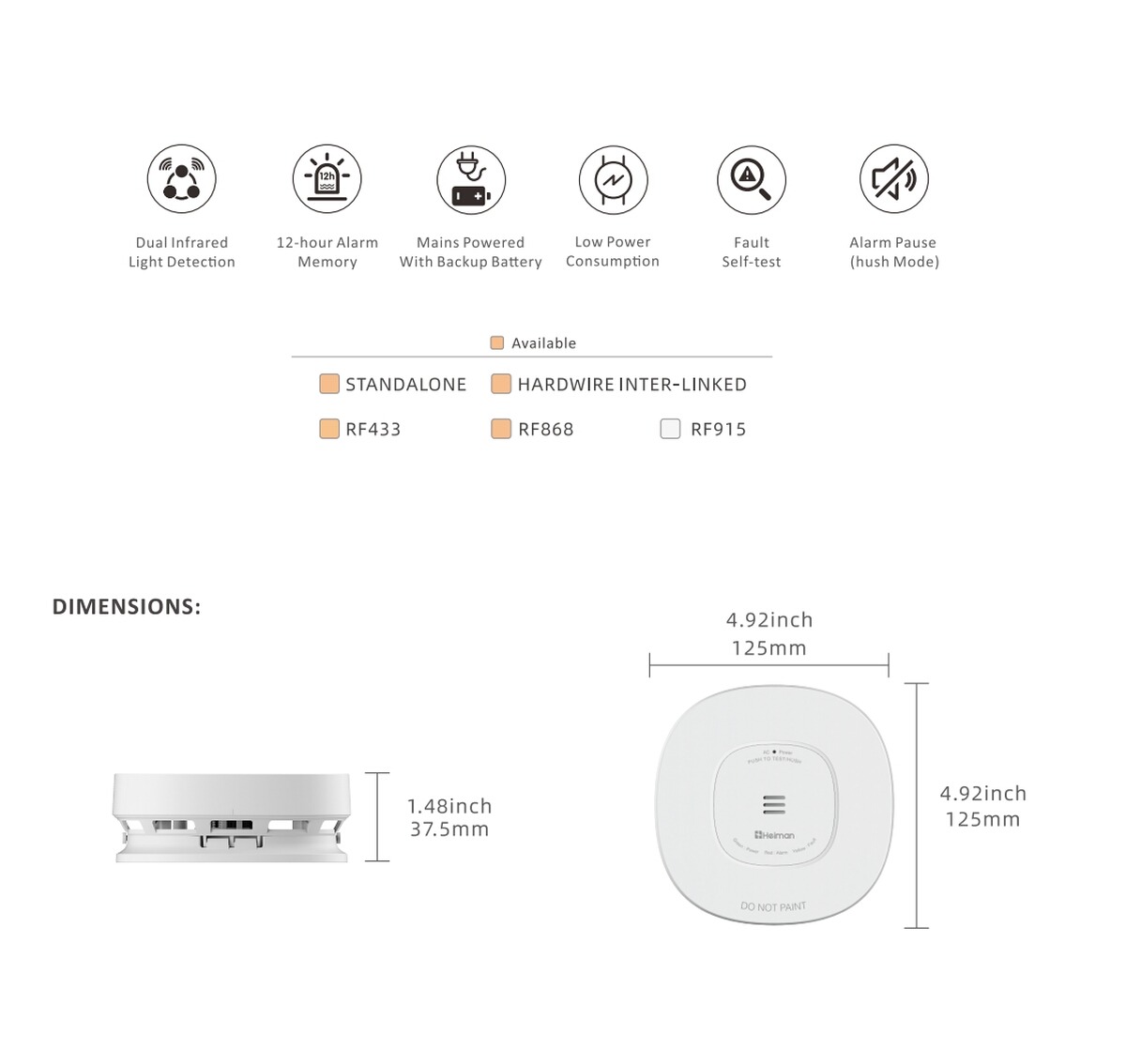

Dimensions |
L125 mm × W125 mm × H46 mm |
L125 mm × W125 mm × H46 mm |
L125 mm × W125 mm × H46 mm |
|
Certification |
CE、BSI、UKCA、RCM、AS 3786 |
CE、BSI、UKCA、RCM、AS 3786 |
UL217 、CAN/ULC S531 、FCC、RCM、AS 3786 |
-

Hardwired Interconnection
Interconnect multiple units for whole-home coverage.When one alarm triggers, all units sound together.Expand protection across bedrooms, halls and floors.Hardwired reliability ensures constant power connection. -

Early Warning Detection
Advanced sensing technology detects smoke rapidly.Provides precious extra time for safe evacuation.Reliable photoelectric sensor reduces false alarms.Guards your family with responsive fire detection. -

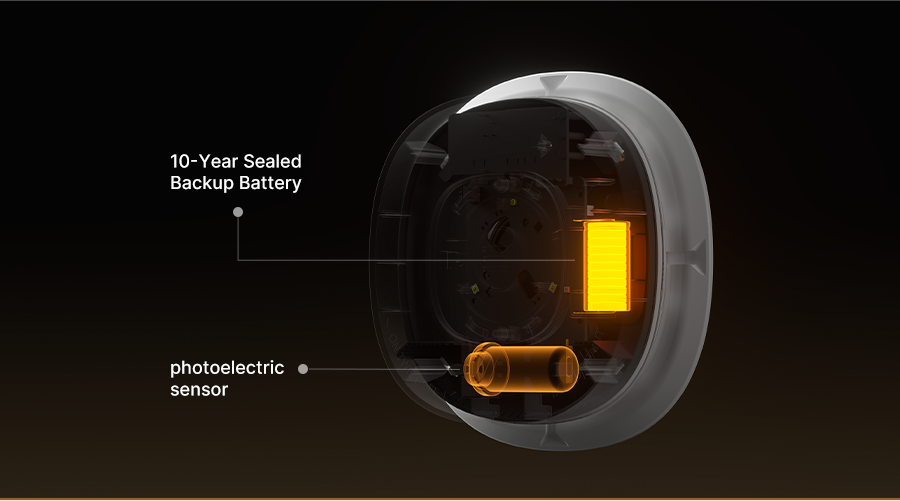

10-Year Sealed Backup Battery
Sealed lithium battery provides decade-long backup power.Protects your home even during electrical outages.Eliminates frequent battery replacement hassles.Long-lasting reliability for continuous safety coverage. -

Oversized Button for Easy Test & Hush
Large, easy-press button for effortless testing and silencing.Quickly hush false alarms with a single touch.Convenient for users of all ages, including seniors.Simplify daily operation while ensuring reliable protection. -

End-of-Life Reminder
An automatic chirp and LED alert when the alarm reaches its 10-year service life.Helps you replace the unit on time for continued protection.Takes the guesswork out of knowing when to replace your alarm.Stay protected with proactive replacement reminders.
Why Choose a Heiman Photoelectric Smoke Alarm?
A Heiman photoelectric smoke alarm is designed for reliable early warning and fewer nuisance alarms. Photoelectric alarms are less prone to false alarms than ionization alarms and are effective at detecting smoldering fires, making them a practical choice for bedrooms, hallways and living areas. The HM-638PHM-AC combines this photoelectric sensing with hardwired interconnection: when one alarm triggers, interconnected units can alert all alarms in the system simultaneously, helping provide whole-home coverage. Heiman smoke alarms feature an 85 dB audible alarm to alert occupants of smoke detection, while the 10-year sealed backup battery keeps protection active during power outages and reduces battery-replacement hassle. Daily use is simple thanks to the oversized test and hush button, clear red LED status indication, and end-of-life alerts that notify users when the smoke alarm needs replacement due to battery or sensor failure. For compliance, the HM-638PHM-AC is the North American version with UL 217 and CAN/ULC S531; If you need wireless or smart-home features, Heiman also offers smart smoke alarms that can connect via Zigbee or Wi-Fi and integrate with smart home systems for remote monitoring—but the HM-638PHM-AC itself is a hardwired interconnected model, not a wireless device.
Frequently Asked Questions
1. What is the Heiman smoke detector HM-638PHM-AC, and what should I check before buying?
The Heiman smoke detector HM-638PHM-AC is a hardwired interconnected photoelectric smoke detector with a 10-year sealed backup battery. Before buying, check the product label, item number, manufacturer, date, price and review options.
2. How is the HM-638PHM-AC installed and wired, and where should I avoid placing it?
Install and wire it according to the instructions using qualified wiring; confirm interconnect compatibility before you start. Do not install in bathrooms or kitchens; photoelectric smoke alarms are recommended for placement in key areas like bedrooms and hallways. Choose an ideal location and plan coverage.
3. How do the test button and red light work, and how often should I test?
Press the test button to confirm operation and read the red light status per the manual. Test weekly/monthly as instructed; check status after several months and confirm the LED pattern.
4. What causes false alarms, and how does this smoke detector reduce them?
Photoelectric alarms are less prone to false alarms than ionization alarms; Heiman smoke alarms feature an 85 dB audible alarm to alert occupants of smoke detection. Keep the smoke detector away from steam and cooking fumes; use hush and correct placement to reduce false alarms.
5. Can the HM-638PHM-AC be connected wirelessly or to smart home systems?
HM-638PHM-AC is hardwired interconnected: when one triggers, they can alert all alarms in the system simultaneously. It is not a wireless smoke model. Wireless smoke options and smart smoke alarms can connect via Zigbee or Wi-Fi; interconnected alarms can use Zigbee or Wi-Fi technology. They can be integrated into smart home systems for remote monitoring. Smart home sensors like Heiman’s must be compatible with necessary protocols; FCC Part 15 standards apply to wireless fire safety devices.
6. Does the HM-638PHM-AC meet compliance for North American markets?
HM-638PHM-AC is the North American version: UL 217 and CAN/ULC S531. HEIMAN smoke alarms comply with EN14604 standards, and EN14604 is a standard for smoke alarm performance. All US-market products comply with UL 217 and UL 2034 standards where applicable; UL 2034 applies to CO detectors. Fire safety compliance includes adherence to NFPA 72 regulations.
7. When should I replace the alarm, and how do end-of-life alerts work?
End-of-Life alerts notify users when the smoke alarm needs replacement due to battery or sensor failure. Review the date and replacement options; photoelectric smoke alarms can have a battery life of up to 5 years, while this model uses a 10-year sealed backup. Confirm the item number when replacing.
8. What other Heiman smoke and CO products can I consider?
Heiman provides various fire safety products including smoke alarms and CO detectors for residential use. Carbon monoxide detectors comply with UL 2034 standards; can detect CO levels as low as 70 ppm; some have a lifespan of 5 years; can be interconnected with other alarms and send alerts to mobile apps. Smart smoke alarms can connect via Zigbee or Wi-Fi; smoke alarms can send real-time alerts to user apps; smart home devices can integrate with Matter and Zigbee protocols.
DOP-HM-638PHW-AC&HM-638PHM-AC:https://www.heimantech.com/product/common/upload/2025/08/21/20250821111104fL.pdf
HM-636,638 series DECLARATION OF PERFORMANCE(BSI certificated):https://www.heimantech.com/product/common/upload/2026/05/19/2026051984257lq.pdf
