Smoke Alarm HM-628PH series
|
Model |
HM-628PHR |
HM-628PHS |
|
Power Supply |
DC 9V Battery (1 × 6F22) |
DC 9V (6F22 / 6LR61 Battery) |
|
Alarm Indication |
Red LED and Alarm Sound |
Red LED and Alarm Sound |
|
Battery Life |
1 year (PAIRDEER Carbon Zinc 6F22 Battery) |
1 year (PAIRDEER Carbon Zinc 6F22 Battery) |
|
Alarm Sound Output |
≥85 dB (at 3 m) |
≥85 dB (at 3 m) |
|
Wireless Type |
MCU Code, 2262 or 1527 Available |
/ |
|
Wireless Frequency |
315 MHz / 433 MHz |
/ |
|
Wireless Distance |
Max. 150 m (Actual wireless distance varies depending on the control panel used) |
/ |
|
Operating Temperature |
-10 °C ~ +50 °C |
-10 °C ~ +50 °C |
|
Operating Humidity |
≤95% RH |
≤95% RH |
|

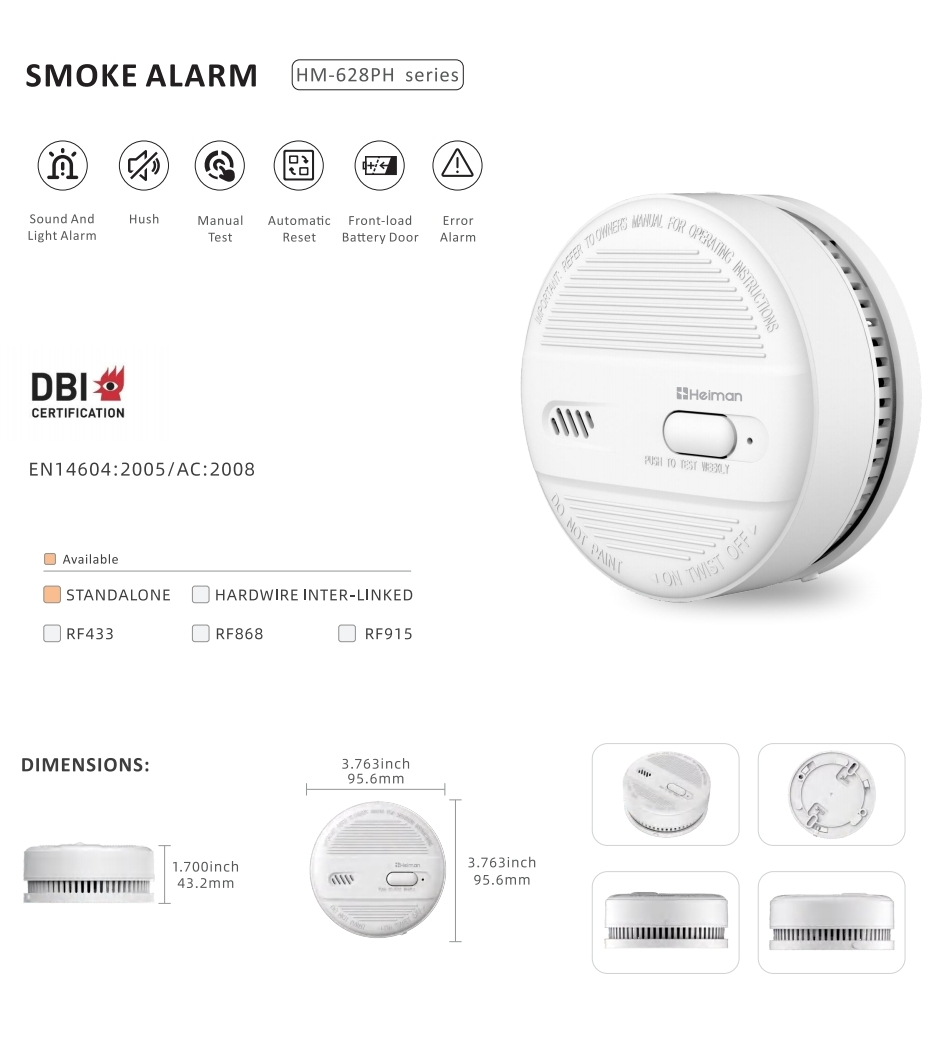

Dimensions |
Φ95.5 × H43.2 mm |
Φ95.5 × H43.2 mm |
|
Detecting Area |
80 m² (Installation Height: 6–12 m)60 m² (Installation Height: ≤6 m) |
80 m² (Installation Height: 6–12 m)60 m² (Installation Height: ≤6 m) |
|
Certification |
CE EN14604 、DBI |
CE EN14604 、DBI |
-

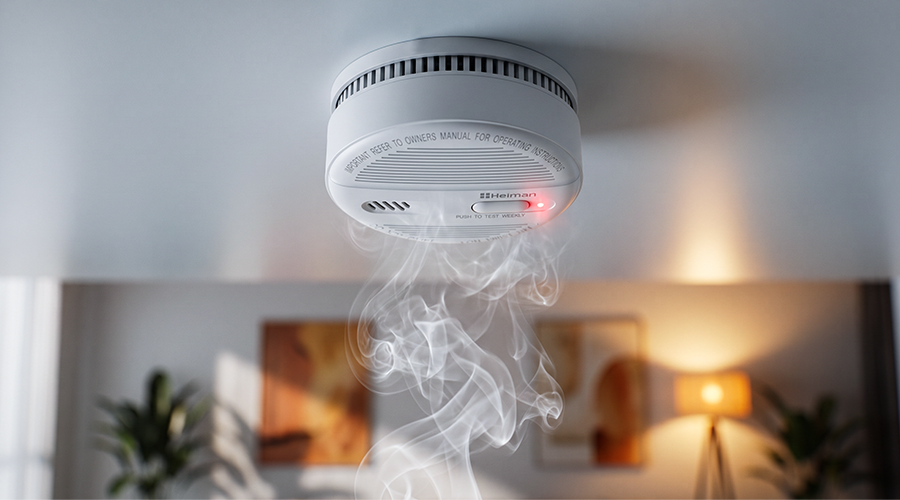

Advanced Photoelectric Sensing
Advanced photoelectric technology detects visible particles.Faster response to smouldering fires than ionization.ldentifies smoke from slow-burning hazards early.Reliable detection for maximum evacuation time.Superior accuracy for dependable home safety. -

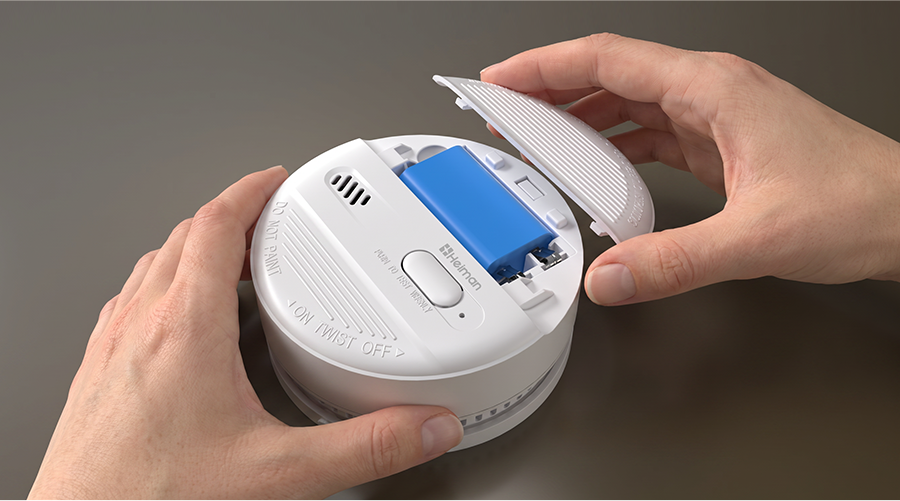

Top Battery Compartment Design
Battery compartment on the top surface.Convenient replacement without removing the unit.Protection against reverse battery loading.Safer and easier maintenance for all users.User-friendly design ensures correct installation. -

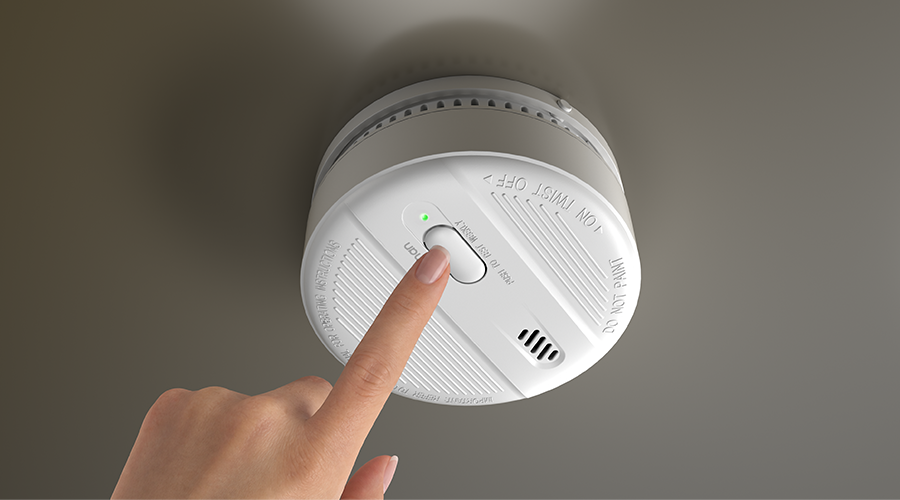

One-Touch Test Button
Single button tests electronic circuitry and functions.Verifies buzzer, battery and sensor performance.Quick routine self-check ensures device readiness.Simple operation for regular maintenance.Confirm your alarm is always emergency-prepared. -

85dB Sound & Flash Alarm
Alarm sound exceeds 85 decibels for immediate alert.Red LED flashes simultaneously during detection.Auto-reset restores normal operation after hazard passes.Powerful audiovisual warning for rapid evacuation.Reliable alert system for the entire household. -

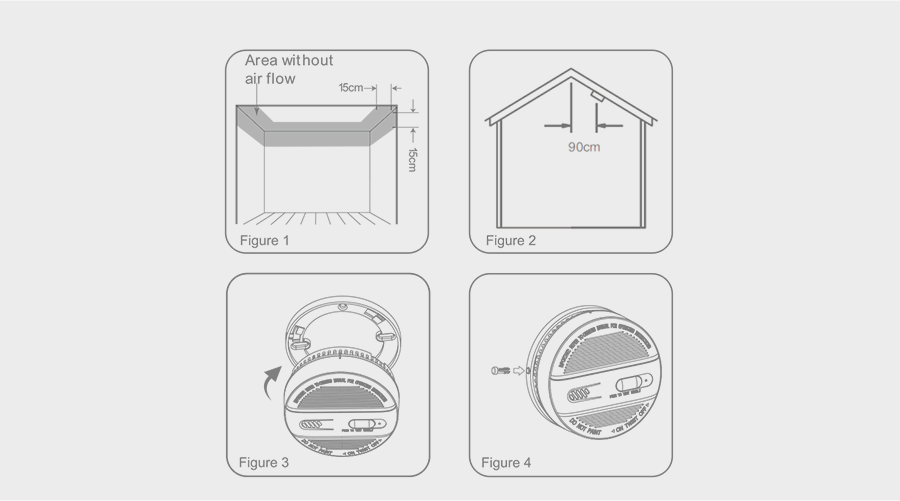

Easy Installation & Maintenance
Simple to install without professional help.Lightweight design enables flexible placement.Mount on walls or ceilings with supplied fixings.Minimal upkeep for long-term reliability.Start protecting your home within minutes.
HM-628PHS DECLARATION OF PERFORMANCE HM2022-628-01:https://www.heimantech.com/product/common/upload/2026/10/22/2026102285307B5.pdf
