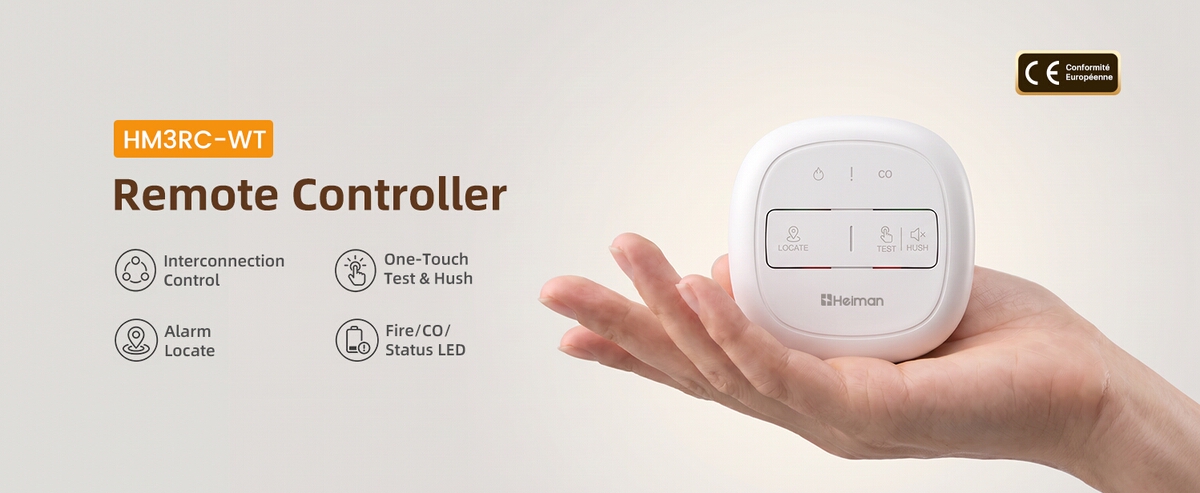

Remote Controller HM3RC series
The controller can manage devices with the same interconnection module, such as heat alarms, smoke alarms, and gas detectors.It includes a low battery warning system to alert users when it's time to replace the unit.This controller allows users to conveniently control their alarms with out physically reaching them, which eliminates the hassle of testing or silencing alarms in hard-to-access areas. There is no need to climb ladders or balance on chairs to test or silence out-of-reach alarms.
SPECIFICATION
|
Model |
HM3RC-WT |
|
Power Supply |
DC 3V (1 × CR123A Lithium Battery, Battery Not Replaceable) |
|
Wireless Protocol |
Proprietary Low-Power Wireless Protocol (Sub-1G FSK) |
|
Frequency |
868 MHz/433 MHz |
|
Wireless Range |
Up ～ 100 m (Open Area) |
|
Max. RF Power |
<13 dBm |
|
Operating Temperature |
-10°C ～ +55°C |
|
Operating Humidity |
≤95% RH (Non-condensing) |
|
Dimensions |
90 × 90 × 22 mm |
|
Certification |
CE |
-

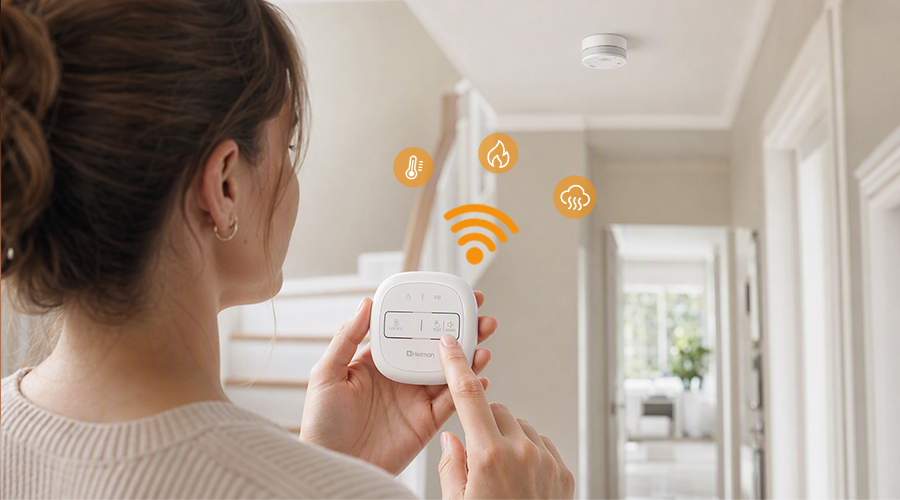

Universal Control & Easy Reach
Unified management for smoke, heat, and gas detectors. Multi-device synchronization across your entire home. Full control of ceiling alarms directly from ground level.Eliminates the need for ladders,chairs, or dangerous climbing. -

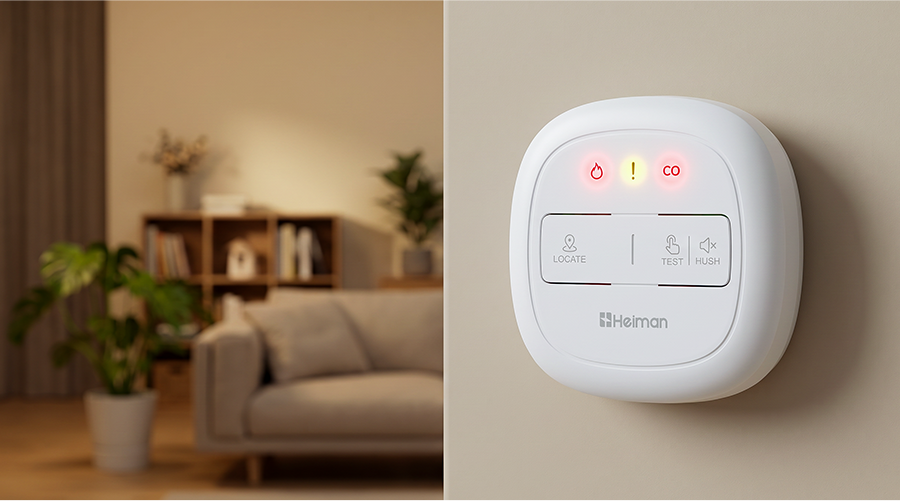

Triple LED Indicators
Fire, CO and status LED indicators.Clear visual alerts for alarm conditions.Instantly identify alarm type at a glance.Monitor interconnected device status remotely.Stay informed with intuitive visual feedback. -

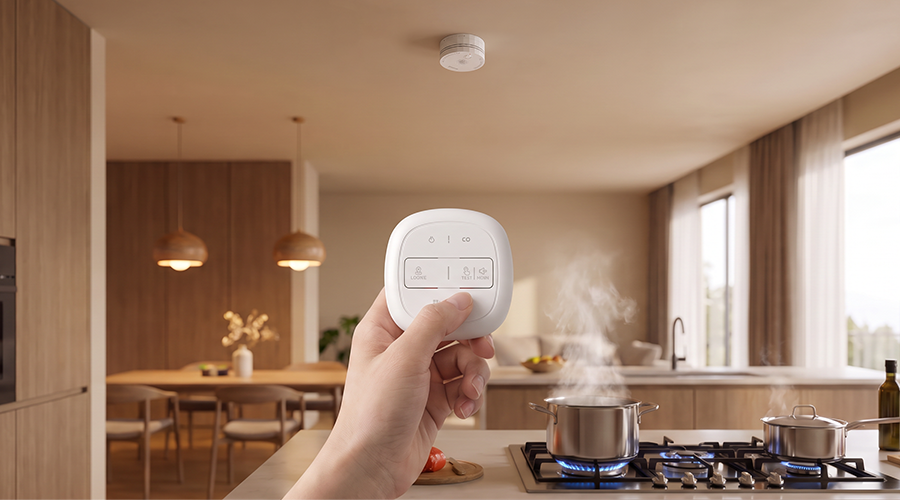

One-Touch Test & Instant Hush
Single-button operation for fast and effortless control.Press once to perform daily routine safety tests.Instant hush for false alarms caused by cooking smoke.Long-press for 1 second to mute low-battery chirps. -

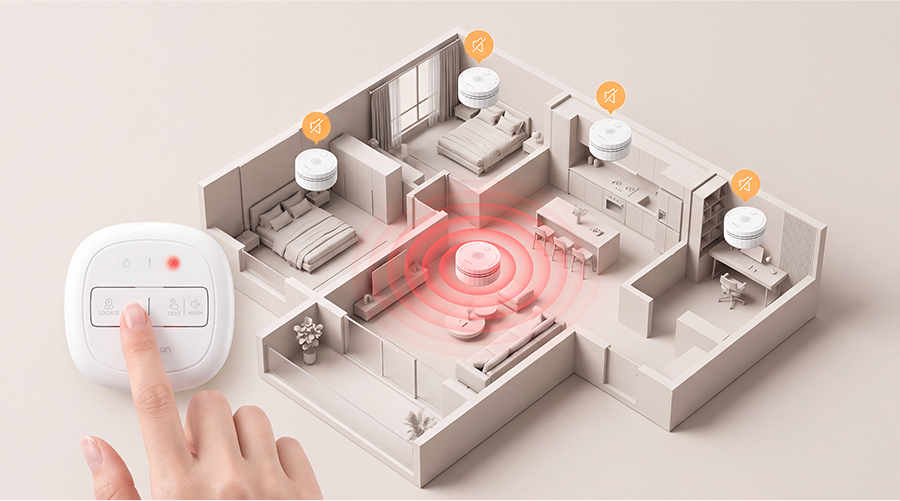

Alarm Locate
Press Locate to find triggered alarms.Identify which device activated.Pinpoint alarm source during events.Saves time in emergency response.Navigate systems with ease.Locate exact alarm without guessing. -

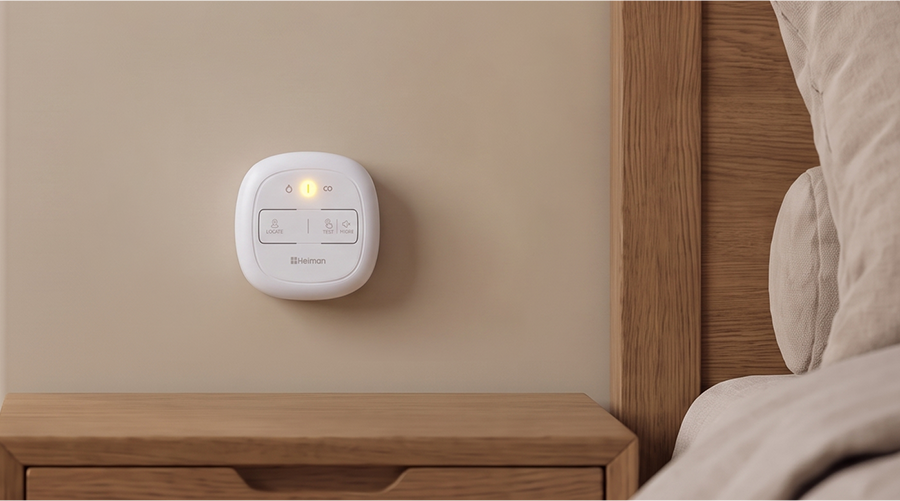

Status Alerts & Maintenance
Malfunction alert signals replacement.Low battery warning for timely replacement.Proactive alerts maintain reliability.Ensure remote is always operational.Timely reminders for maintenance.Replace for uninterrupted control.
