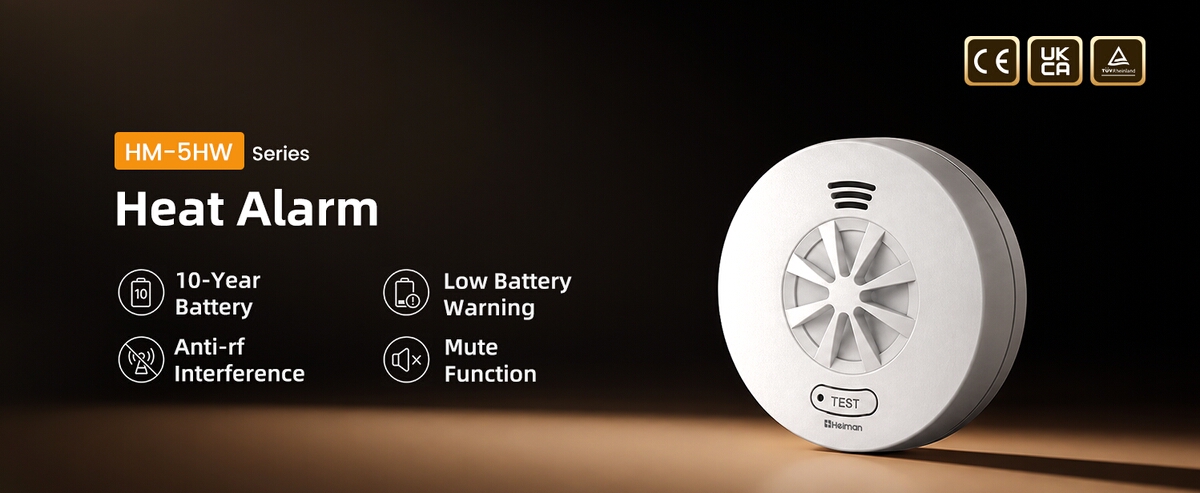

Heiman HM-5HW series Heat Alarm (Battery Powered)
|
Model |
HM-5HA |
HM-5HW |
HM-5HW-T |
|
Power Supply |
DC 3V (Lithium Battery) |
DC 3V (Lithium Battery) |
DC 3V (Lithium Battery) |
|
Wireless Protocol |
/ |
433MHz |
868 MHz |
|
Visual Alarm Signal |
Red LED |
Red LED |
Red LED |
|
Sound Level |
≥85 dB (at 3 m) |
≥85 dB (at 3 m) |
≥85 dB (at 3 m) |
|
Operating Temperature |
-10°C ~ +65°C |
-10°C ~ +65°C |
-10°C ~ +65°C |
|
Operating Humidity |
≤95% RH (Non-condensing) |
≤95% RH (Non-condensing) |
≤95% RH (Non-condensing) |
|
Sensor Life |
10 years |
10 years |
10 years |
|
Sensor Type |
Thermistor |
Thermistor |
Thermistor |
|
Power Supply Mode |
10-Year Built-in Battery |
10-Year Built-in Battery |
10-Year Built-in Battery |
|
Installation Position |
Ceiling Mounting |
Ceiling Mounting |
Ceiling Mounting |
|
Certification |
CE、UKCA、TUV |
CE、UKCA、TUV |
CE、UKCA、TUV |
-

Network Wireless Interconnection
Built-in RF connects 2+ alarms wirelessly.One triggered, all units sound together.Interlinked network for whole-home coverage.Expand across rooms and floors.Reliable wireless sync for alerts.Not compatible with other brands. -

10-Year Sensor & Battery
High-precision thermistor with 10-year lifespan. Sealed 10-year battery for lasting power. No wiring or frequent replacements needed. Advanced sensing with stable long-term performance.Maintenance-free protection for a full decade.Reliable detection and power year ply year after year. -

Anti-RF Interference
Anti-RF design resists interference.Stable wireless communication between units.Reliable in electronic environments.Prevents false triggers from signals.Dependable connectivity for networks.Accurate performance without disruption. -

Self-Test & Mute Function
Built-in self-test verifies operation.Mute function silences non-emergencyalarms. One-touch control for convenience. Routine checks ensure readiness. User-friendly for everyday use.Simple testing and hush control. -

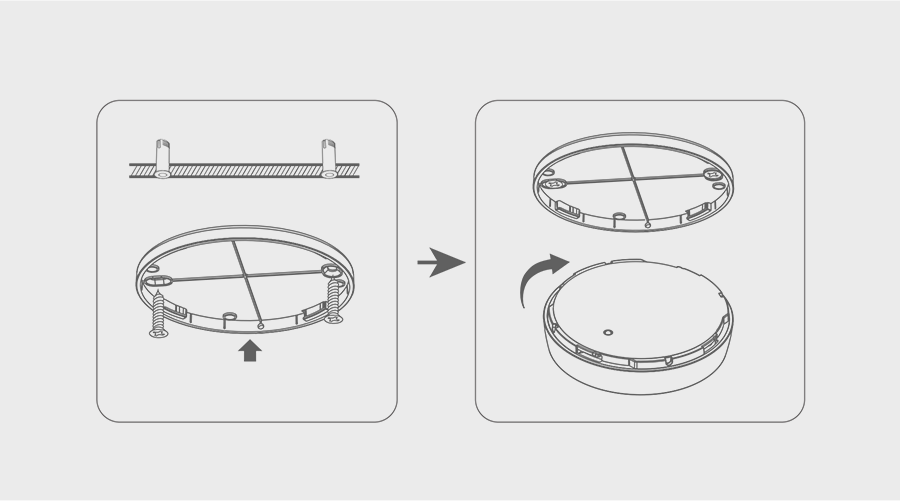

Easy installation
Screw-mount for secure installation.Ideal for basements, hotels and homes.Suitable for computer rooms and cafe.Install at the center of room ceiling.Keep away from corners and dead zones.Optimal placement for reliable detection.
Why Is a Heat Alarm Important for Home Security?
A heat alarm can complement a broader home safety strategy by providing temperature-based fire detection in areas where a smoke alarm may be more likely to experience nuisance triggers.
Heiman heat alarms offer an audible alarm of at least 85 dB at 3 meters. The HM-5HW heat alarm has an acoustic alarm volume of 85 dB, helping provide a clear warning when the alarm is activated.
Different safety devices address different risks. A smoke alarm is designed to detect fire-related smoke conditions, while a carbon monoxide alarm monitors CO. A heat alarm adds temperature-based detection for suitable areas, helping families choose the right combination of devices for different parts of the home.
Who is this product for?
The HM-5HW Series is designed for homeowners and families who need additional heat-based fire detection in areas such as kitchens, garages, and utility rooms. It is also suitable for users who want wireless interconnection between compatible alarms without conventional electrical wiring.
For larger properties, the expandable wireless network can help extend alerts across multiple rooms. Users who need smart platforms, remote notifications, or other connected features should compare the requirements and features of different Heiman devices before making a purchase.
FAQ
Is the HM-5HW a certified heat alarm, and who is the manufacturer?
The HM-5HW is a Heiman heat alarm designed and manufactured for reliable indoor safety applications. Heiman devices comply with applicable safety and market requirements, and the HM-5HW heat alarm complies with applicable standards and certifications, including CE and UKCA.
Before installation or purchase, users should review the product specifications and instructions for their market. The manufacturer’s product information can help users understand the alarm’s features, installation requirements, and intended application.
What happens when the heat alarm is triggered, and can I shut or silence it?
When the HM-5HW detects a temperature condition that reaches its alarm threshold, it provides an audible warning and the red LED flashes rapidly. Interconnected compatible alarms can also sound to help alert family members in other areas.
The alarm includes a hush function that can temporarily silence a non-emergency alarm when appropriate. Users should never simply shut or disable an alarm without first checking the reason for the alert and confirming that there is no emergency.
What safety standards should I consider when choosing a Heiman alarm?
When choosing a Heiman alarm, consider the safety standards and certifications applicable to the alarm type and your target market. Different alarms are designed to detect different hazards, so it is important to check that the model meets the relevant regional requirements.
- Smoke Alarms: Look for UL 217 certification in the US and EN 14604 compliance in Europe. These standards address smoke alarm performance and safety requirements.
- Carbon Monoxide (CO) Alarms: Look for UL 2034 in the US, CSA 6.19-17 in Canada, and EN 50291-1 in Europe. These standards cover residential CO alarm requirements.
- Gas Alarms: For natural gas alarms in North America, check for UL 1484 certification. Ensure the product is designed for the specific gas type and meets the applicable regional requirements.
- Water Leak Sensors: Check the product's applicable electrical safety, radio, and regional compliance requirements, as water leak sensors follow different certification requirements from smoke, CO, and gas alarms.
When evaluating a product, also check the certification body and the exact model number. For example, selected Heiman North American smoke alarms meet UL 217 10th Edition, while selected CO alarms meet UL 2034 and CSA 6.19-17 requirements. European models carry applicable CE certification, with selected smoke alarms also meeting additional requirements such as NF and Q-Label.
Can Heiman safety sensors work with other emergency protection devices?
Some Heiman sensors can automate emergency lighting and gas shutoff as part of a compatible connected safety system. These automation features depend on the specific sensor, connected devices, and smart home configuration.
The HM-5HW is designed as a wireless interconnection heat alarm. Its core function is to detect heat conditions and share an alarm signal with compatible interconnected HM-5HW units. Users who need additional automation should choose a Heiman product specifically designed to support those connected functions.
What makes the Heiman heat alarm different from a smoke detector, smoke sensor, or carbon monoxide alarm?
The Heiman heat alarm detects changes in temperature rather than smoke particles. This makes it suitable for areas where cooking, steam, or dust may create frequent nuisance alarms for a conventional smoke detector.
A smoke detector or smoke sensor detects conditions associated with smoke, while the HM-5HW heat alarm responds to temperature conditions. Heat-based detection can be useful in kitchens, garages, utility rooms, and other areas where environmental conditions may affect smoke detection.
No. A carbon monoxide alarm, smoke alarm, and heat alarm monitor different hazards. Heat alarms do not replace smoke alarms but can provide supplementary fire detection in suitable areas.
The HM-5HW is designed to provide heat-based fire detection and should be used as a supplement to appropriate smoke alarm protection. A complete home safety plan may use different devices in different locations based on the risks and installation requirements of each area.
Does the HM-5HW work with Home Assistant or other Heiman smart safety technologies?
The HM-5HW is designed as a wireless interconnection heat alarm, and its RF interconnection should not be confused with smart home platform connectivity. Users looking specifically for Home Assistant, Matter, Zigbee, or Google Home integration should select a Heiman product that explicitly supports those platforms.
Across applicable products, Heiman devices support the Matter open connectivity standard, Matter devices can work across platforms such as Google Home, and selected Heiman devices can integrate with Home Assistant for local control. These features depend on the individual device and do not apply automatically to the HM-5HW.
Heiman offers different safety devices with features designed for specific applications. Selected smoke detectors use Zigbee 3.0 wireless technology and can emit an 85 dB alarm sound. Heiman’s Zigbee CO sensor also has an 85 dB alarm sound and provides a visual alert if limit values are exceeded.
Heiman’s devices comply with strict safety regulations globally, while individual products may meet different certification and market requirements. Heiman heat alarms comply with various applicable safety standards, including CE and UKCA, and Heiman also offers OEM/ODM services for tailored safety hardware solutions.
What should I consider before I buy, install, and operate the HM-5HW heat alarm?
Before you buy a heat alarm, review the installation instructions, room requirements, product features, and the type of protection needed for each area of your home. Consider where cooking, dust, or other environmental conditions could make a smoke detector less suitable.
The HM-5HW is designed for easy installation and wireless interconnection between compatible units. Users can add multiple alarms for broader coverage and share alerts across the connected network when one unit is triggered.
The HM-5HW is a Heiman heat alarm designed and manufactured for reliable indoor safety applications. Heiman devices comply with applicable safety and market requirements, and the HM-5HW heat alarm complies with applicable standards and certifications, including CE and UKCA.
The HM-5HW heat alarm operates reliably within a temperature range of -10°C to +50°C. This operating range helps support stable performance in appropriate indoor environments.
Before installation or purchase, users should review the product specifications and instructions for their market. The manufacturer’s product information can help users understand the alarm’s features, installation requirements, and intended application. Users should still follow the installation instructions and choose a suitable location based on the conditions of the room and the intended use of the alarm.
What are the main benefits of choosing the HM-5HW heat alarm, and is it the right device for my family?
The main benefits of the HM-5HW include heat-based detection, wireless interconnection between compatible alarms, a long-life sensor and battery design, and simple self-test and hush functions. Its ability to provide an audible warning across an interconnected network can help extend alerts to other areas of the home.
A standalone heat alarm should not be viewed as a less useful or “**dumb**” device simply because it does not rely on a smart home platform. The HM-5HW is designed to provide a specific safety function: detecting dangerous temperature conditions and sharing an alarm with compatible interconnected units.
There are a lot of things to consider, including installation location, room conditions, battery maintenance, interconnection requirements, and whether a smoke alarm is also needed. Families should consider the different hazards present in each area of the home.
Some users may have specific features they loved in a previous alarm, while others may want a different combination of functions for future needs. The alarm is designed to be ready for everyday use after correct installation and regular testing.
The right choice depends on the home’s requirements, the areas being protected, and the type of safety features the user wants. For users who want to protect areas affected by cooking fumes, steam, or dust, a heat alarm can be a useful addition to a wider home safety system.
Where can I find, review, sort, and purchase information about the HM-5HW heat alarm?
Before making a purchase, users may read a product review, view product information, or check relevant comments and community discussions to learn how different users approach installation and home safety planning.
When comparing safety products, users can sort information by device type, installation method, wireless features, certifications, and intended application. This makes it easier to identify which features are most relevant to each area of the home.
For example, a smoke alarm is designed to detect smoke-related fire conditions, while the HM-5HW focuses on heat-based detection. Looking at these differences can help users choose the right devices instead of purchasing features they do not need.
Users can check official sales channels or authorized retailers to find availability for the HM-5HW. Depending on the market, users may also search online marketplaces such as Amazon.
Before completing a purchase, review the model name, product details, and applicable certification information to make sure the selected alarm meets your requirements. However, community information should be used as additional reference material. Always follow the official instructions provided by the manufacturer for installation, testing, and use of the HM-5HW heat alarm.
