Combustible Gas Detector Heiman WS2CG series
The smart combustible gas alarm(called alarm for short hereinafter),is used to detect natural gas(CH4),the built-in semiconductor gas sensor has a long lifespan and tiny sensitivity drift, when the natural gas is detected and exceeds the alarm concentration, the alarm will send out sound and light alarm signal immediately,at the same time, the valve manipulator turns off the gas valve automatically,the real-time alarm will also sent to users' APP.The alarm is suitable for indoor use and should be installed at places where natural gas leakage m
SPECIFICATION
|
Model |
WS2CG |
|
Working Voltage |
AC100V ~ 240V |
|
Networking |
Wi-Fi2.4GHz |
|
Average Power Consumption |
≤3W |
|
Warm-up Time |
Approx.3min |
|
Detected Gas |
Natural Gas(CH₄) |
|
Alarm Sensitivity |
6%LEL±3%LEL |
|
Alarm Indication |
Red LED Flashes+Voice Prompt |
|
Fault Indication |
Yellow LED Flashes+Voice Prompt |
|
Sound Level |
≥70dB(at 1m) |
|
Alarm Mode |
Audible and Visual Alarm |
|
Auxiliary Output |
Valve Manipulator Output |
|
Valve Manipulator Output |
11~13V,500mA |
|
Operating Temperature |
-10°C~+55°C(Indoor Use Only) |
|
Storage Temperature |
-20°C ~ +60°C |
|
Operating Humidity |
≤95%RH(Non-condensing) |
|
Installation |
Wall Mounting,Plug-and-Play |
|

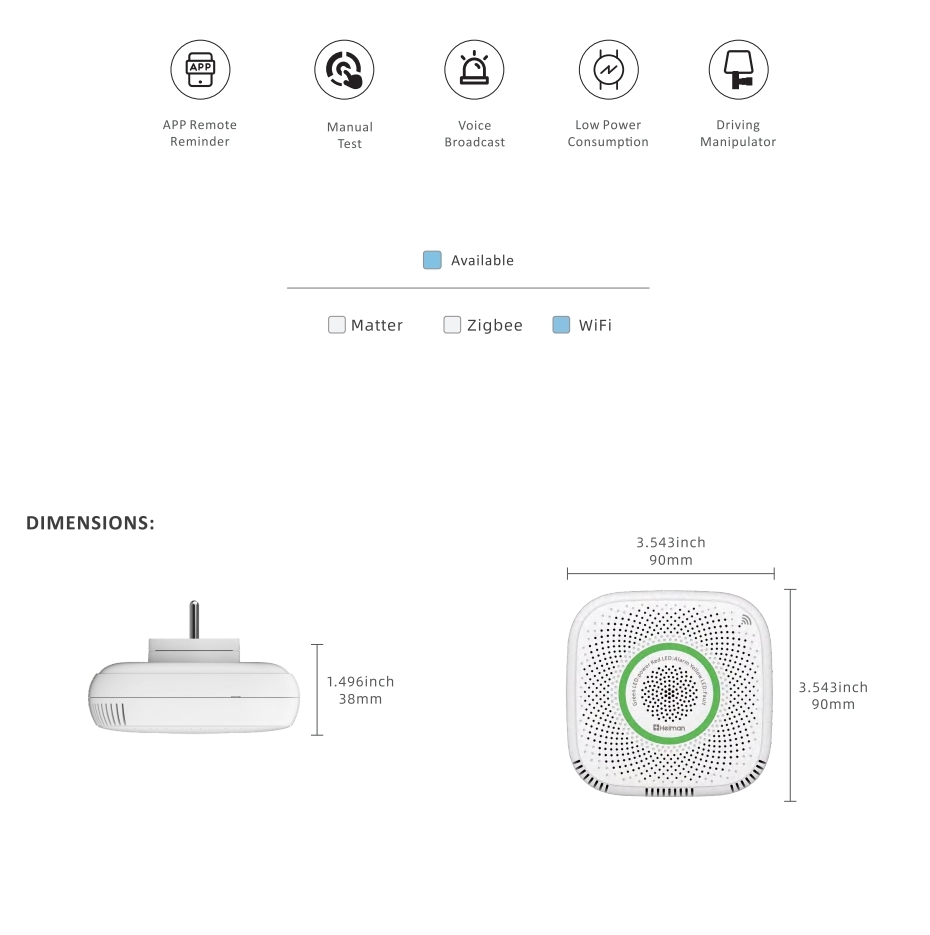

Dimensions |
89.5×89.5×38mm(Plug Not Included) |
|
Certification |
CE |
-
Real-Time CH₄ Detection
Advanced semiconductor sensor for precise natural gas detection.Triggers alarm at 6%LEL+3%LEL for early hazard warning.Long sensor lifespan with minimal sensitivity drift.Continuously monitors indoor air for methane leakage.Detects gas leaks before they reach dangerous levels.Professional-grade sensing for reliable kitchen safety. -
Wi-Fi Smart Connection
Direct Wi-Fi 2.4GHz connection for easy smart home integration.No additional hub required-connects straight to your router.Stable wireless networking with simple setup process.Real-time data sync to your smartphone instantly.Reliable connectivity for continuous remote monitoring.Seamless smart home experience right out of the box. -
APP Remote Reminder
Instant gas leak alerts sent directly to your smartphone.Monitor real-time device status from anywhere.Receive alarm notifications even when away from home.Check sensor health and alarm history through the app.Stay connected to home safety around the clock.Remote visibility for total peace of mind. -
Voice Broadcast & Visual Alarm
Loud >70dB alarm with red LED flashing alerts. Clear voice prompt broadcasts hazard warnings aloud.Dual audible and visual alarm for maximum attention.Yellow LED and voice prompt for fault indication.Ensures no warning is missed, even during sleep.Intuitive audio-visual alerts for the whole family. -

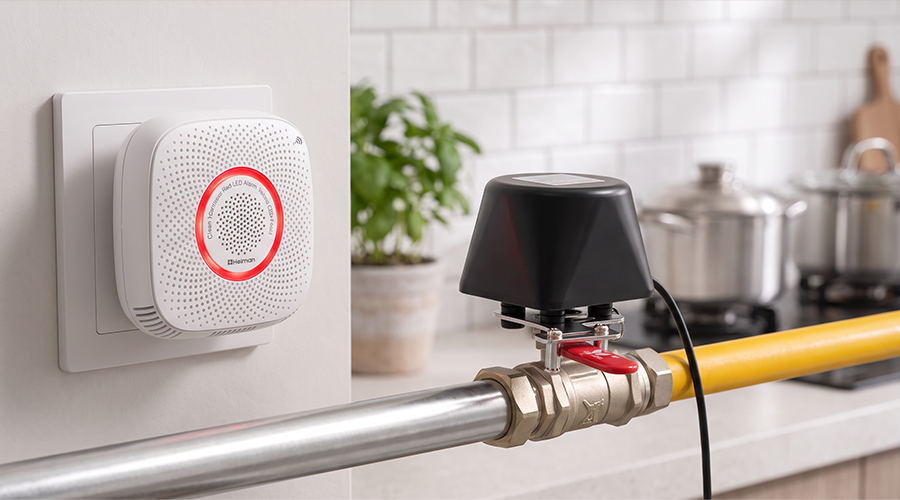

Valve Manipulator Control
Built-in output drives valve manipulator automatically.Delivers 11~13V at 500mA for reliable shutoff erformance.Automatically turns off gas valve when leakage is detected.Cuts off danger atthe source without manual intervention.Auxiliary output for expanded safety system integration.Smart protection that responds faster than you can. -
ManualTest & Plug And Play
Single button for quick manual sensor testing.Verify alarm, voice, and LED function instantly.Ultra-low power consumption under 3W for energy efficiency.Plug-and-play or wall-mount installation options.Compact 89.5x89.5x38mm design suits any kitchen.User-friendly setup with no professional tools needed.
