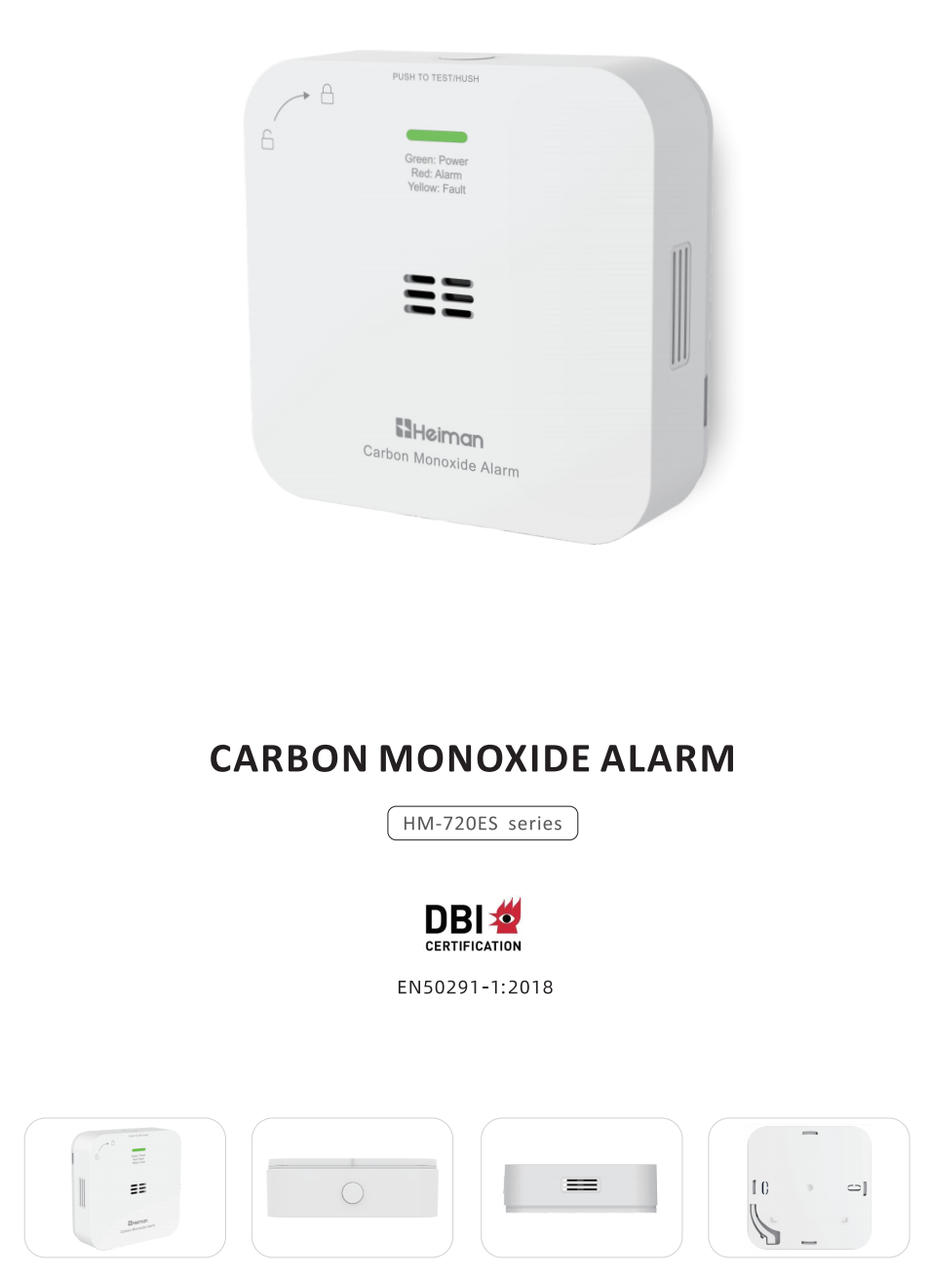

Heiman HM-720ES Series Carbon Monoxide Alarm (Battery Powered)


The Heiman HM-720ES Series is a high-precision, battery-powered carbon monoxide (CO) alarm engineered for early detection of toxic, odorless CO gas in residential and commercial spaces. Powered by an advanced electrochemical sensor, the device delivers accurate monitoring and triggers a dual audible siren and red visual LED alert upon identifying dangerous CO concentrations. Featuring low power consumption architecture, the HM-720ES is available in flexible 5-year and 10-year battery lifespans. Its compact form factor supports effortless wall or ceiling mounting, while built-in self-diagnostics—including a manual test button and sensor error notifications—ensure continuous, dependable safety performance.
Specifications of Products:
SPECIFICATION

Model

HM-720ES

HM-720ES-M

WS-720ES

Power Supply

DC 2 × 1.5V Alkaline AA LR6 Batteries (PAIRDEER / NECTIUM / NANFU)

DC 2 x 1.5V Alkaline AA LR6 (PAIRDEER/NECTIUM/NANFU)

DC 2 × 1.5V Alkaline AA LR6 Batteries (PAIRDEER / NECTIUM / NANFU)

Sensor Lifespan

Max. 10 years

Max. 10 years

Max. 10 years

Battery Life

5 years

5 years

5 years

Wireless Protocol

/

2.4 GHz - 2.48 GHz

WiFi 2.4 GHz

Operating Conditions

-10 °C ~ +40 °C, 0–95% RH (Non-condensing)

-10℃ ~ +40℃(14°F ~ 104°F), 0% ~ 95%RH (non-condensing)

-10 °C ~ +40 °C, 0–95% RH (Non-condensing)

Storage & Transportation Conditions

-20 °C ~ +50 °C, 0–70% RH (Non-condensing)

-20℃ ~ +50℃(-4°F ~ 122°F),
0% ~ 70%RH (non-condensing)

-20 °C ~ +50 °C, 0–70% RH (Non-condensing)

Sound Level

≥85 dB (at 3 m)

≥85 dB (at 3 m)

≥85 dB (at 3 m)

Alarm Output

Visual and Audible Indication

Visual and Audible Indication

Visual and Audible Indication

Warm-up Period

Approx. 100 seconds

Approx. 100 seconds

Approx. 100 seconds

Mounting Method

Wall Mounting / Ceiling Mounting

Wall Mounting / Ceiling Mounting

Wall Mounting / Ceiling Mounting

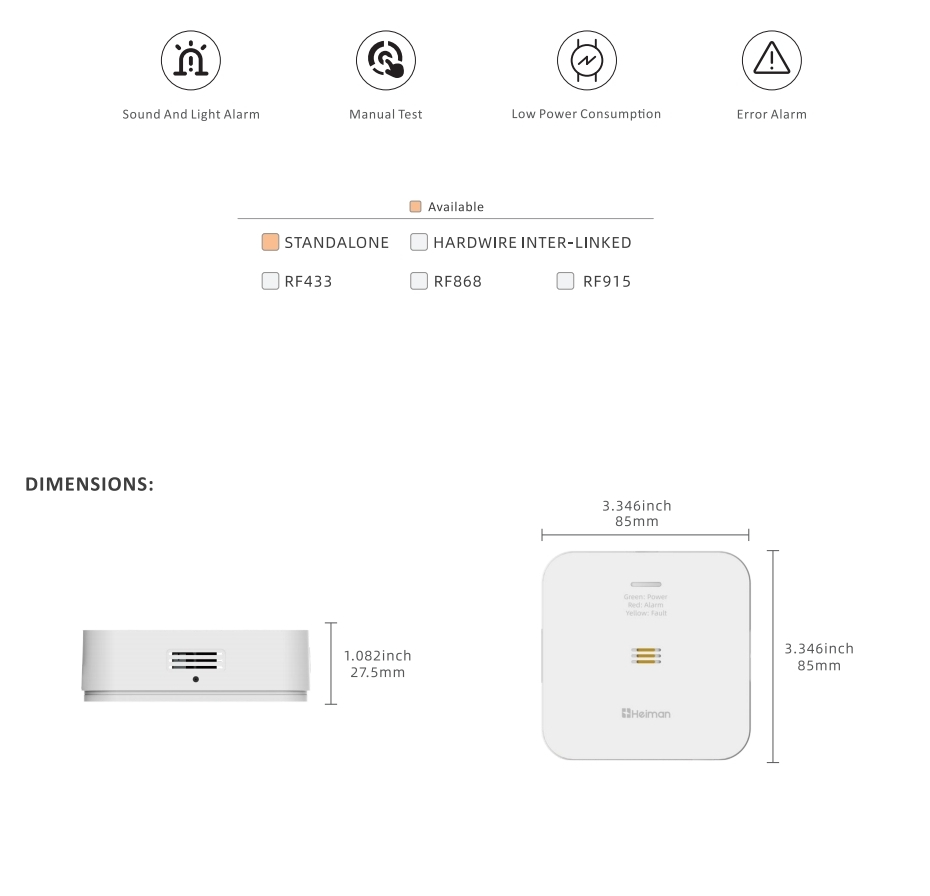

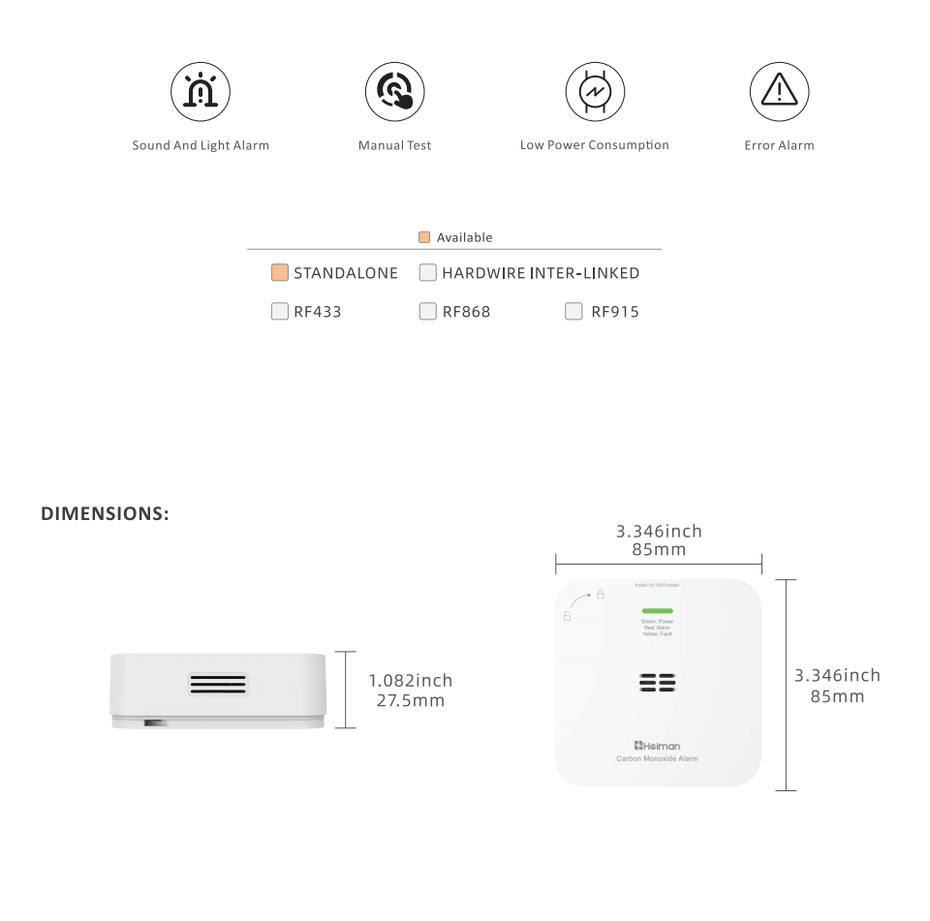

Dimensions

85 × 85 × 28 mm

85 × 85 × 28 mm

85 × 85 × 28 mm

Certification

CE

CE

CE



  • Heiman HM-720ES Series Carbon Monoxide Alarm (Battery Powered)
  • Heiman HM-720ES Series Carbon Monoxide Alarm (Battery Powered),Electrochemical Carbon Monoxide Sensor

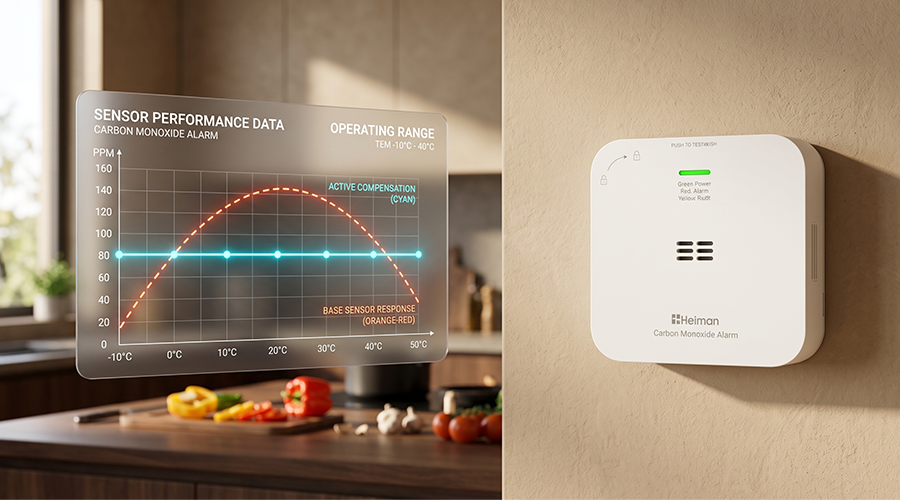

    Electrochemical Carbon Monoxide Sensor

    Electrochemical sensor for precise detection of CO. Highly sensitive to carbon monoxide levels. Reliable early warning for hazardous CO. Stable long-term performance and accuracy. Professional sensing for dependable home safety.
  • Heiman HM-720ES Series Carbon Monoxide Alarm (Battery Powered),Sound And Light Alarm for Maximum Safety

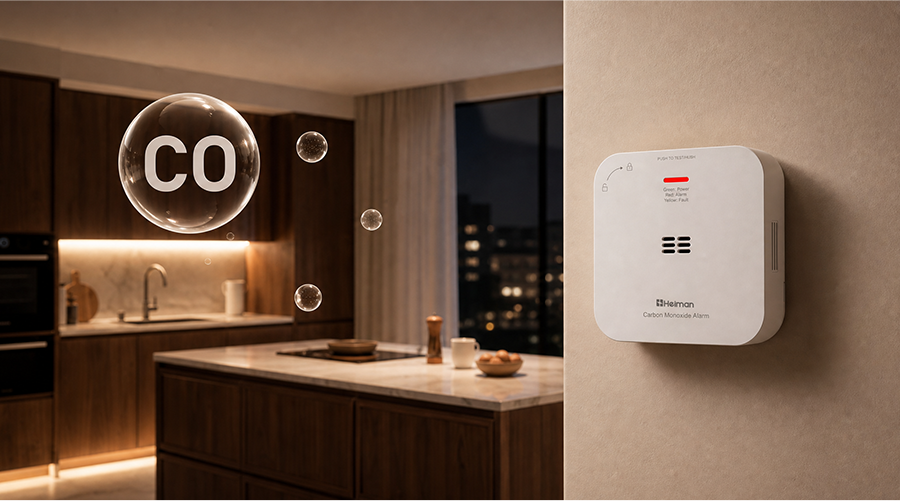

    Sound And Light Alarm for Maximum Safety

    Audible and visual alarm on CO detection. Red LED flashes with loud siren alerts. Dual warning ensures no hazard is missed. Loud enough to wake all occupants. Instant notification for safe evacuation. Reliable alerts for maximum safety.
  • Heiman HM-720ES Series Carbon Monoxide Alarm (Battery Powered),Manual and Real Time Test

    Manual and Real Time Test

    Single button for quick manual testing. Verify that the button can trigger the alarm function and sensor-status check when pressed. Simple operation for routine self-checks. Ensure device readiness with one press. User-friendly design for all family members. Maintain confidence with regular verification.
  • Heiman HM-720ES Series Carbon Monoxide Alarm (Battery Powered),Low Power Consumption

    Low Power Consumption

    Energy-efficient for extended battery life. Minimizes power usage for long-term use. Reduces battery replacement frequency. Sustainable performance with low energy. Eco-friendly operation for lasting safety. Dependable detection with minimal power.
  • Heiman HM-720ES Series Carbon Monoxide Alarm (Battery Powered),Error Alarm

    Error Alarm

    Automatic fault detection with alerts. Warns when sensor errors occur. Timely notification for maintenance. Ensures continuous reliable monitoring. Self-diagnostic for device health. Proactive error warnings for safety.
  • Heiman HM-720ES Series Carbon Monoxide Alarm (Battery Powered),Wall or Ceiling Mounting

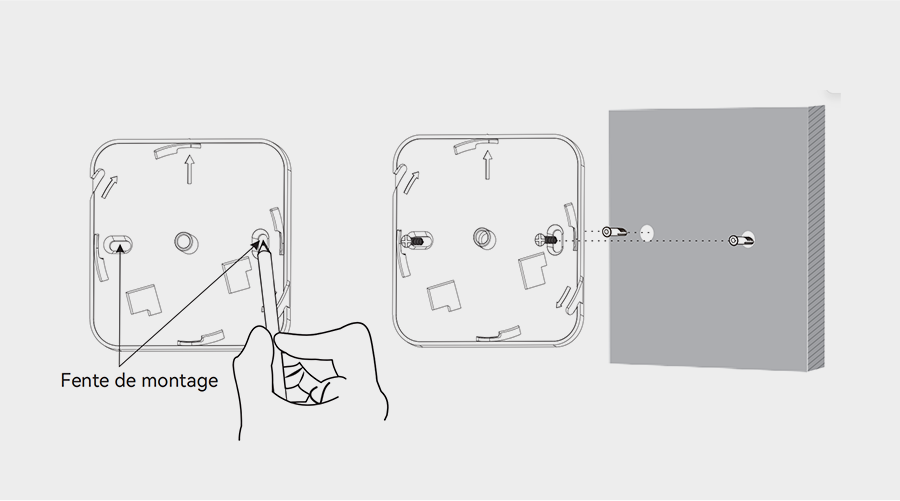

    Wall or Ceiling Mounting

    Flexible wall or ceiling installation. Choose optimal position for detection. Mounting hardware included for setup. No professional tools required. Compact design fits various layouts. Secure placement for long-term use. Battery operation allows flexible placement without wiring.

    *Heiman also offers carbon monoxide detectors compatible with smart home ecosystems like Matter and Zigbee 3.0, and other devices support Zigbee 3.0 and Z-Wave protocols.

Why Is a Carbon Monoxide Alarm Important for Home Security and Alarm Systems?

Carbon monoxide is a colorless, odorless, and potentially deadly gas that can accumulate indoors without being noticed. A carbon monoxide alarm is therefore an essential part of a comprehensive home safety strategy.

Unlike conventional security systems that focus on intrusion detection, a CO alarm protects occupants from invisible environmental hazards. The Heiman HM-720ES Series uses an electrochemical sensor to detect carbon monoxide and provides audible and visual alerts to warn occupants when dangerous CO levels are detected.

For homeowners integrating multiple safety devices, a CO alarm adds another layer of protection alongside smoke detectors and intrusion alarms. Users interested in Home Assistant or smart home automation should check device compatibility before expecting direct integration.

When researching different alarm solutions, online Community discussions can provide useful information about installation, wiring, sensor performance, and maintenance. A well-organized forum with sortable column headers, such as topic, replies, views, and activity, makes it easier to find relevant discussions.

Users can also check views activity to identify popular Posts, see which topics have been opened and read, and review thanks from other Community members. These details may help buyers understand common installation questions and product experiences.

Whether you found the HM-720ES Series through Amazon, a home security forum, or a product discussion, installing a reliable carbon monoxide alarm is an important step toward protecting your household.



Who Is This Product For?

The Heiman HM-720ES Series carbon monoxide alarm is designed for specific users who need reliable CO protection in residential and indoor environments:

Homeowners Using Gas Appliances: People who use gas stoves, water heaters, boilers, fireplaces, or other fuel-burning appliances and need continuous carbon monoxide monitoring.

Apartment Owners and Renters: Residents who need a convenient, battery-powered CO alarm that does not require complicated wiring or permanent electrical installation.

Landlords and Property Managers: Professionals responsible for rental apartments and residential buildings who want to improve tenant safety with dependable carbon monoxide detection.

Home Security Installers and System Integrators: Professionals looking to expand their alarm systems with standalone carbon monoxide detection and improve overall residential safety.

DIY Smart Home Enthusiasts: Users researching Home Assistant, home automation, and alarm solutions who want to understand how standalone CO detectors can complement their existing smart home setups.



FAQ



Q1. What is the Heiman HM-720ES Series carbon monoxide alarm?

The Heiman HM-720ES Series is a carbon monoxide (CO) alarm designed to help protect homes and other indoor environments from dangerous carbon monoxide exposure. It uses an electrochemical sensor to detect CO and provides audible and visual alerts when hazardous concentrations are detected.



Q2. How does the HM-720ES Series detect carbon monoxide?

The HM-720ES Series uses electrochemical sensing technology to detect carbon monoxide in the surrounding air. When CO reaches the alarm’s specified response conditions, the device activates its audible alarm and flashing red LED to alert occupants.



Q3. How loud is the HM-720ES Series alarm?

The HM-720ES Series provides an audible alarm of at least 85 dB when measured at a distance of 3 meters, together with a flashing red LED. These combined alerts help occupants recognize a potential carbon monoxide hazard and respond promptly.



Q4. Are Heiman smart alarms Matter certified?

Yes. Heiman's alarms have obtained Matter 1.2 certification, and Heiman's HS1SA smoke alarm is Matter 1.2 certified, along with the C1 carbon monoxide alarm. These smart models can work with Matter platforms such as Apple Home, Google Home, Amazon Alexa, and Samsung SmartThings. The HM-720ES Series is a standalone CO alarm and does not support Matter.



Q5. Does the Heiman HM-720ES Carbon Monoxide Alarm meet UL 2034 standards?

No. The Heiman HM-720ES Carbon Monoxide Alarm is not UL 2034 certified. However, if you specifically need a carbon monoxide alarm that meets UL 2034 standards, Heiman offers other options, such as the C1 Carbon Monoxide Alarm, which meets UL 2034 requirements.



Q6. Can I test the HM-720ES Series to check whether it is working?

Yes. The alarm features a manual test button that allows users to check the device’s alarm function. Regular testing according to the product’s instructions helps verify that the alarm can provide audible and visual alerts when needed.



Q7. Is Heiman’s HS1SA smoke alarm CE certified?

Yes, Heiman’s HS1SA smoke alarm is CE certified. This certification indicates that the product meets the applicable European Union requirements for safety, health, and environmental protection.



Q8. Can the HM-720ES Series be installed on a wall or ceiling?

Yes. The HM-720ES Series supports both wall mounting and ceiling mounting. Its compact dimensions of 85 × 85 × 28 mm make it suitable for a range of indoor layouts. Select the installation location according to the product’s instructions and applicable local CO alarm requirements. Some HEIMAN devices can integrate with Apple Home and Google Home. HEIMAN products also support Matter and Thread protocols. HEIMAN alarms have obtained Matter certification, and HEIMAN products are Bluetooth BQB and Thread accredited.



Q9. Where should carbon monoxide alarms be installed in a home?

Carbon monoxide (CO) alarms should be installed outside each separate sleeping area and on every level of the home, including the basement where applicable. Proper placement helps ensure that occupants can hear the alarm and respond promptly if dangerous carbon monoxide levels are detected. Always follow the product’s installation instructions and local building codes.



Q10. Can a carbon monoxide alarm replace a smoke alarm?

No. A carbon monoxide alarm cannot replace a smoke alarm because the two devices detect different hazards. A CO alarm detects carbon monoxide, an odorless and potentially deadly gas, while a smoke detector detects smoke from a potential fire. For comprehensive home safety, install both CO alarms and smoke detectors as required by local regulations.



Q11. Where should carbon monoxide alarms not be installed?

Avoid installing carbon monoxide alarms directly next to fuel-burning appliances, such as gas stoves, furnaces, and water heaters, unless the manufacturer’s instructions specifically recommend that location. Close proximity to these appliances may expose the alarm to localized emissions and contribute to nuisance alarms. Follow the manufacturer’s placement guidance and applicable local requirements to select an appropriate installation location.



Q12: Do Heiman carbon monoxide alarms display real-time PPM levels?

Display features vary by model.

The Heiman  HM-720ES Series Carbon Monoxide Alarm does not feature a built-in digital display for showing CO concentration levels in PPM. However, models such as the HM-733ESY, HM-723ESY, and HM-722ESY feature digital displays that allow users to view carbon monoxide concentration readings in PPM.

Depending on the model, users can choose between a straightforward alarm-based CO detection solution and a model with a digital display for more direct visibility of indoor CO levels.

When reading product reviews, community replies, or comparison posts, always check whether the specific CO alarm includes a digital display rather than assuming all models offer the same functionality.



Q13. Which Heiman carbon monoxide alarm is certified for both the U.S. and Canada?

The HM-720ES Series is not UL 2034 certified. For North American homes, the C1 Carbon Monoxide Alarm has dual U.S. and Canadian certifications, conforming to UL 2034 and certified to CSA 6.19. Like the HM-720ES Series, the C1 uses an electrochemical sensor for accurate CO detection.

SPECIFICATION
POWER SUPPLYDC3V(2*AA Batteries)
SENSOR TYPEElectrochemical
SOUND LEVEL≥85dB (at 3m)
ALARM CONCENTRATION30 ppm without alarm before 120 min
ALARM CONCENTRATION50 ppm without alarm before 60 min, with alarm before 90 min
ALARM CONCENTRATION100 ppm without alarm before 10 min, with alarm before 40 min
ALARM CONCENTRATION300 ppm with alarm before 3 min
ALARM OUTPUTAudio and flash alarm
POWER SUPPLY MODE5 years Battery
