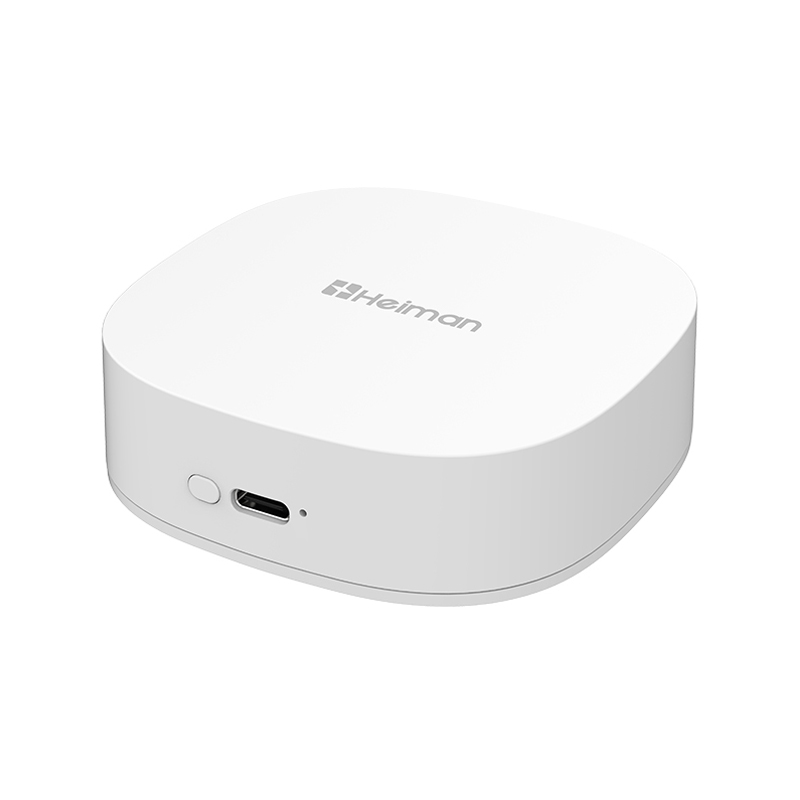

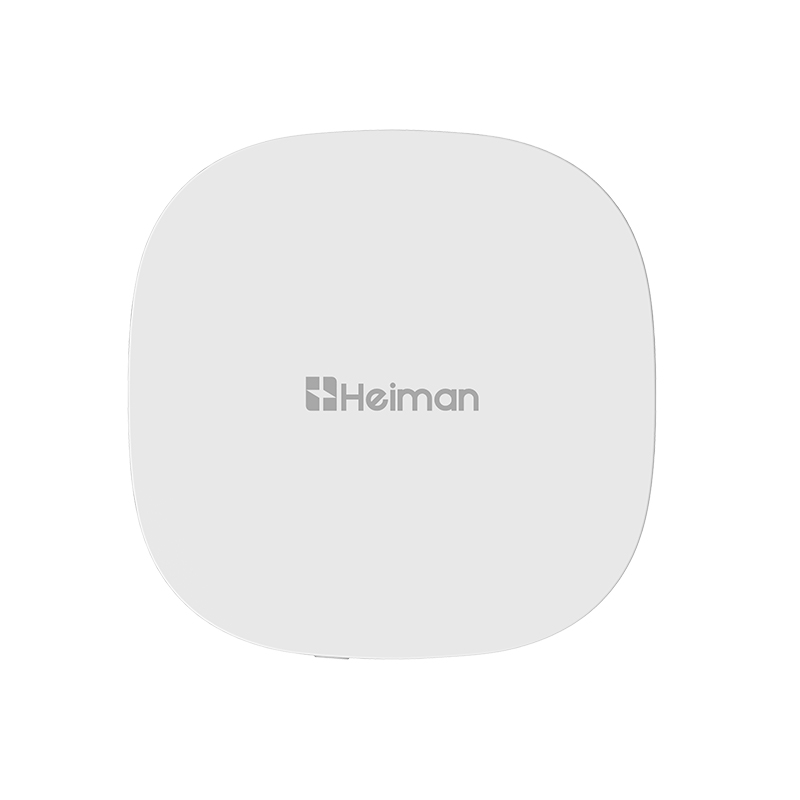

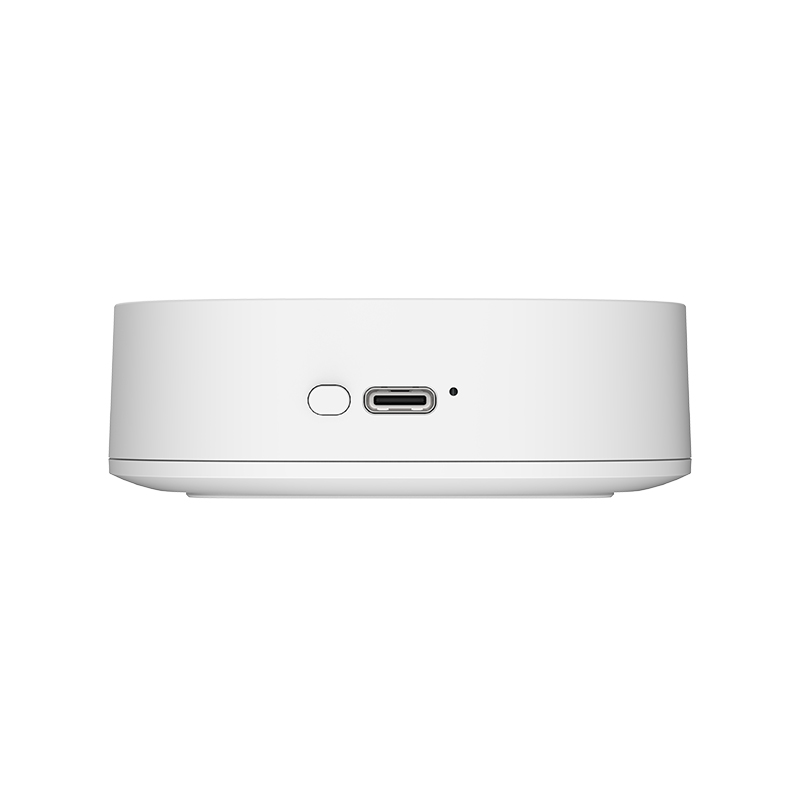

Smart Human Fall Down Sensor HS2FD series
The Heiman HS2FD is an intelligent fall detector using non-optical millimetre-wave radio frequency imaging technology. It provides 7×24-hour non-contact automatic monitoring without requiring wearables, preserving user privacy. Ultra-low power Zigbee 3.0 connectivity sends immediate alerts to family or carers when a fall occurs. (Multiple models available; confirm specifications with customer service.)
-

Smart Algorithm: High Accuracy, Low False Alarms
False alarms cause unnecessary panic. The HS2FD's proprietary high-precision algorithm achieves exceptional accuracy, filtering interference from daily activities and pets. It reliably identifies real falls even in complex scenarios – cluttered rooms, nighttime, or near furniture. -

60GHz Millimetre-Wave Radar: Precise Fall Recognition
The HS2FD uses advanced millimetre-wave radar with 46 antennas to generate high-resolution RF images that distinguish human movement and posture. Unlike cameras, it captures no visual images, ensuring complete privacy while accurately identifying falls versus normal activities like walking, sitting, or bending. -

Wide Area Coverage: 140° Horizontal Field of View
The HS2FD's 140° field of view covers most standard rooms. Whether installed in a living room (covering sofa and dining area) or bedroom (covering bed and walkways), it eliminates blind spots in core areas for all-round protection. -

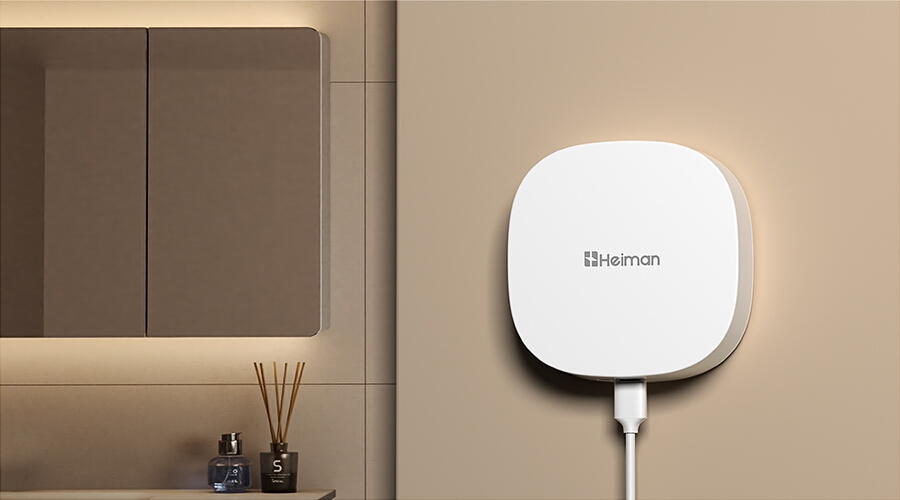

Non-Contact Monitoring: Privacy Protection, Worry-Free Use
Privacy-first design with contactless radar detection – no cameras, no wearables needed. It monitors via radar signals (no visual data), requires no charging or wearing, and provides instant, unobtrusive protection after simple installation -

Automatic Fall Alarm with APP Remote Reminder
When every second counts, the HS2FD acts as an "invisible guardian." It automatically alarms on fall detection and simultaneously sends remote alerts to family members' phones via the app. Wherever you are, home emergencies are known immediately. -

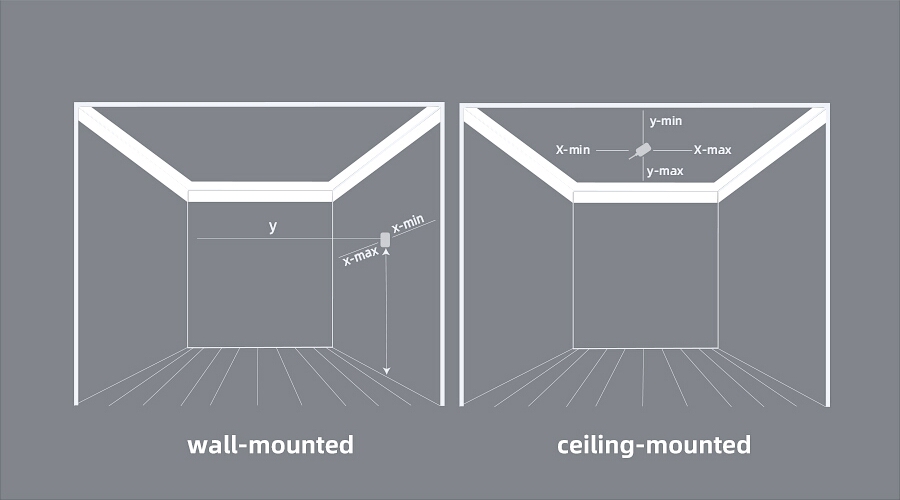

Compact Design: Flexible Installation for Any Space
The HS2FD's minimalist, compact design integrates into any home style. Supports wall or ceiling mounting with flexible positioning and complete accessories for quick installation. Bedside mounting enables targeted monitoring; living room installation maximises coverage.
SPECIFICATION
| Power InputDC 5V 2A (mains adapter included) |
| Networking ModeZigbee 3.0 (hub required, not included) |
| Power Consumption≤10W (peak) |
| Working Temperature-10°C to +55°C |
| Working Humidity≤95% RH (no condensation) |
| Detection RangeWall mounting 4×4m; Ceiling mounting 4×5m |
| Dimensions80×80×25mm |
