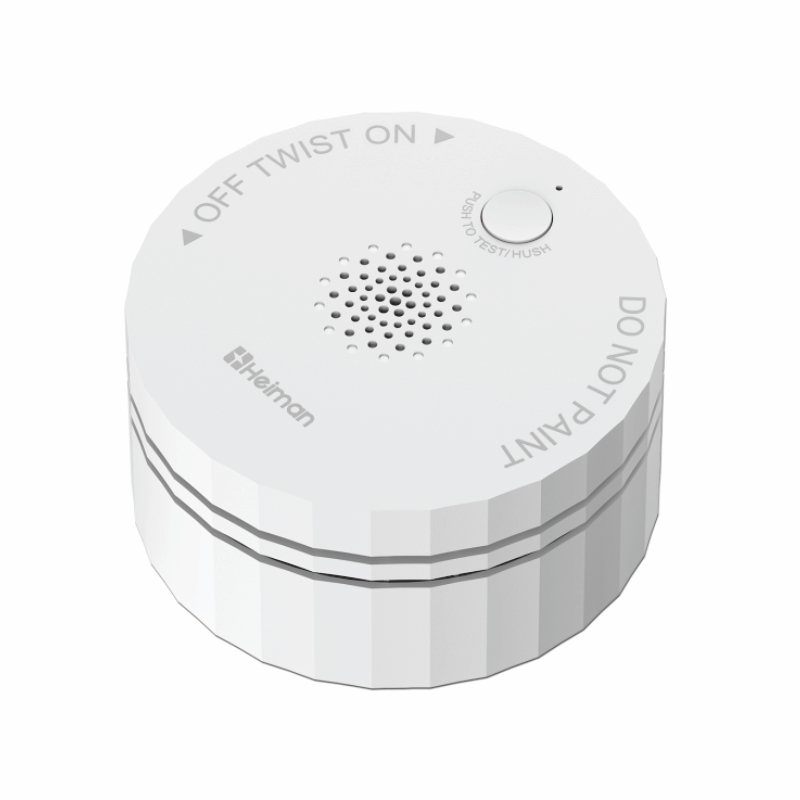

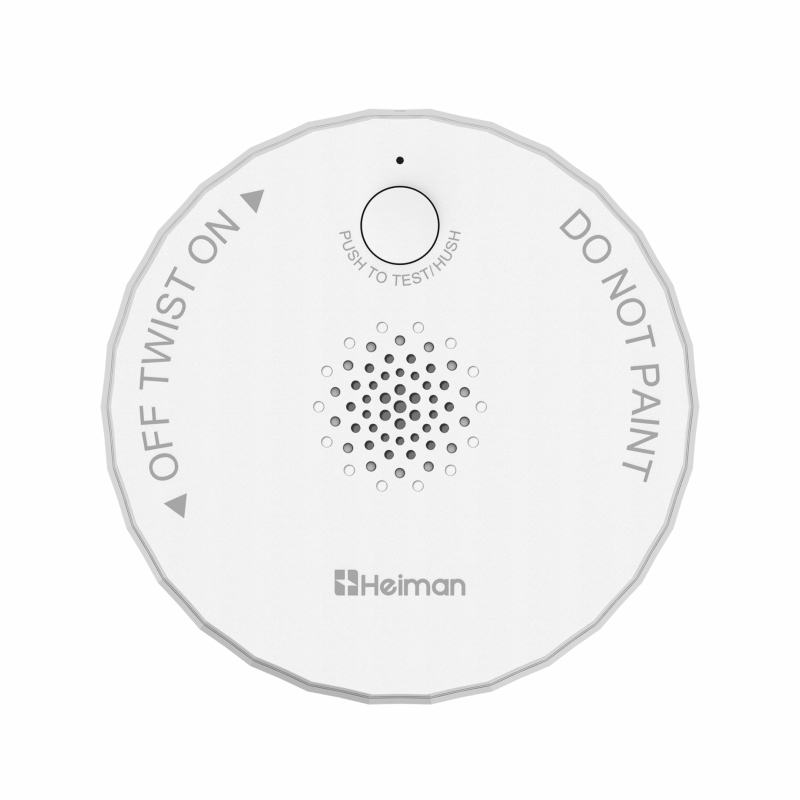

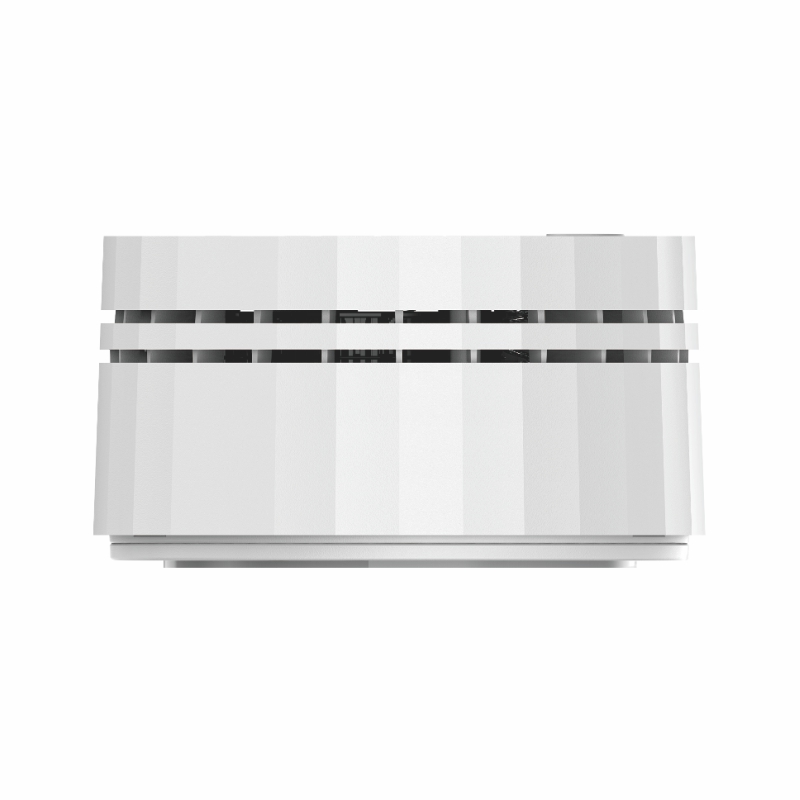

Smart Smoke Fire Alarm S1 series

Our smoke alarm is engineered to prioritize your family’s safety, combining advanced detection technology with user-friendly design. Every feature is crafted to eliminate risks, simplify maintenance, and fit seamlessly into your daily life—ideal for bedrooms, living rooms, kitchens, and rental spaces.(This product offers multiple models and configuration options. Specific specifications and parameters are subject to confirmation by official customer service.)

SPECIFICATION

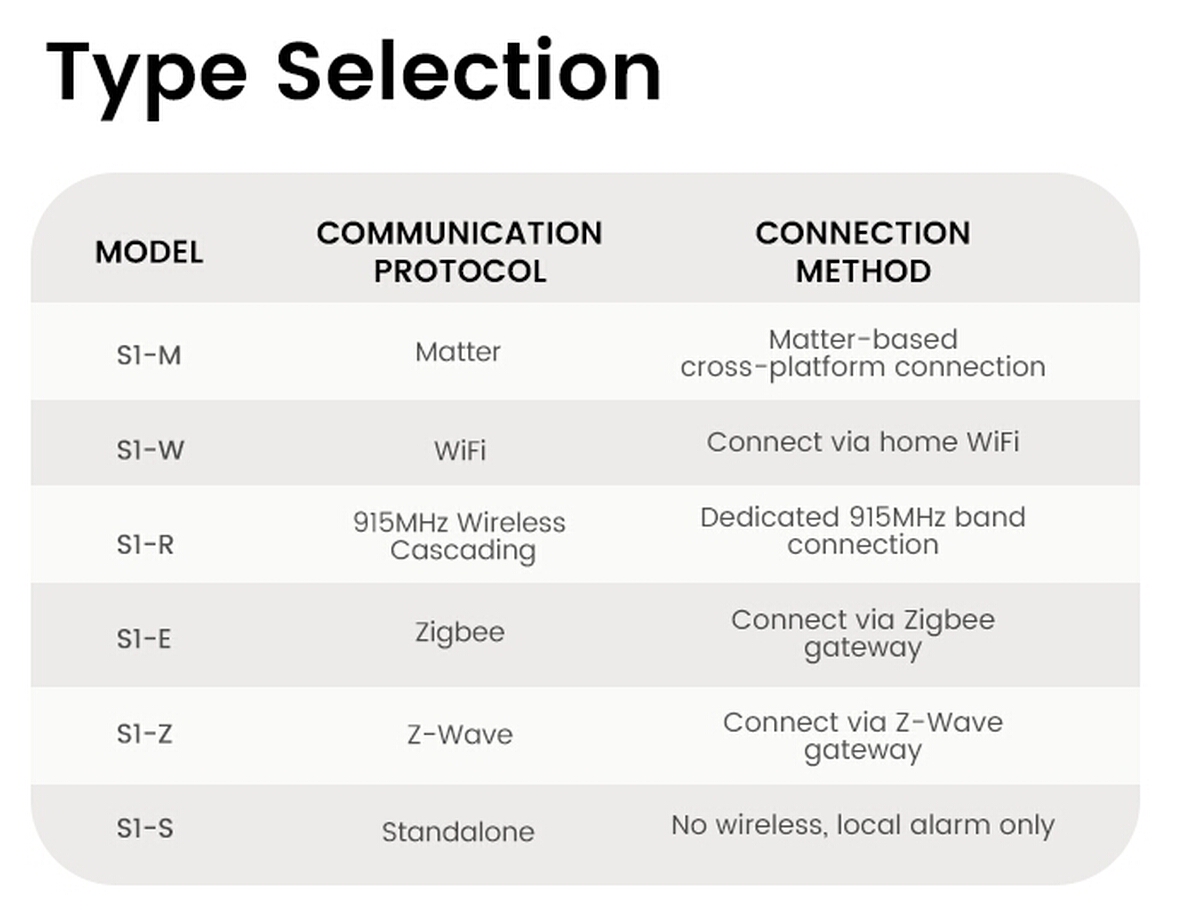

Model	S1-M	S1-TM	S1-R	S1-S
Power Supply	DC 3V (EVE CR123A Lithium Battery)	DC 3V (EVE CR123A Lithium Battery)	DC 3V (EVE CR123A Lithium Battery)	DC 3V (EVE CR123A Lithium Battery)
Wireless Protocol	Matter over Thread	Matter over Thread	Proprietary Low-Power Wireless Protocol (Sub-1G FSK)	/
Wireless Range	Up ～ 200 ft (Open Area)	Up ～ 200 ft (Open Area)	915 MHz Up ～ 800 ft (Open Area)	/
Alarm Indicator	Red LED	Red LED	Red LED	Red LED
Sound Level	≥85 dB (at 10 ft)	≥85 dB (at 10 ft)	≥85 dB (at 10 ft)	≥85 dB (at 10 ft)
Installation Position	Wall Mounting / Ceiling Mounting	Wall Mounting / Ceiling Mounting	Wall Mounting / Ceiling Mounting	Wall Mounting / Ceiling Mounting
Operating Temperature	40 °F (4.4 °C) ～ 100 °F (37.8 °C)	40 °F (4.4 °C) ～ 100 °F (37.8 °C)	40 °F (4.4 °C) ～ 100 °F (37.8 °C)	40 °F (4.4 °C) ～ 100 °F (37.8 °C)
Operating Humidity	≤95% RH (Non-condensing)	≤95% RH (Non-condensing)	≤95% RH (Non-condensing)	≤95% RH (Non-condensing)
Dimensions	Φ2.76" × H1.46"	Φ2.76" × H1.46"	Φ2.76" × H1.46"	Φ2.76" × H1.46"
Battery Life	5 years	3.5 years	8.3 years	14 years
Certification	ETL UL217 、CAN/ULC S531 FCC、Matter	Matter、CE 、EN14604 、DBI、UKCA	ETL UL217 、CAN/ULC S531 FCC	EN14604、ETL UL217 、CAN/ULC S531、 FCC

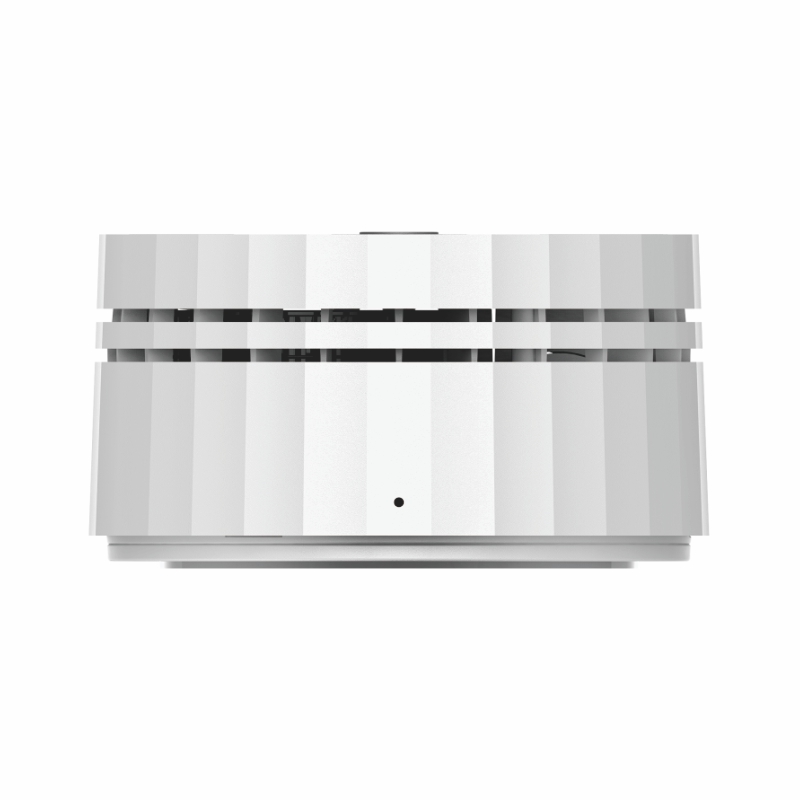

360°Smoke Inlet

Innovative 360° circular smoke inlet structure breaks the traditional detection blind area. No matter which direction the smoke spreads, it can be quickly captured. The smoke inlet channel of Heiman smoke alarm is optimized with smaller air resistance and faster response , striving for precious time for fire early warning. It is an "all-round sentinel" for home safety.
Dual wavelength

Equipped with red light + infrared dual-wavelength detection chip, it is the core technical highlight of Heiman smoke alarm. The dual wavelengths work together to accurately distinguish fire smoke from interfering sources such as cooking fumes and aroma steam, reducing the false alarm rate. Whether it is the thick black smoke from open fire or the thin smoke from smoldering, it can be accurately identified, avoiding the trouble caused by invalid alarms.
Proactive Fault Alert - Preventing Risks Before They Escalate

It monitors the operating status of internal components in real time, and immediately issues audio-visual alerts when the equipment is abnormal (such as sensor failure, low battery voltage) to proactively avoid blind spot risks.
One-Touch Self-Check - Safety Status at Your Fingertips

No complex steps! Just press the button to check if the alarm is working properly. Perfect for busy parents, seniors, or anyone who wants simple, regular safety checks—no technical skills needed.

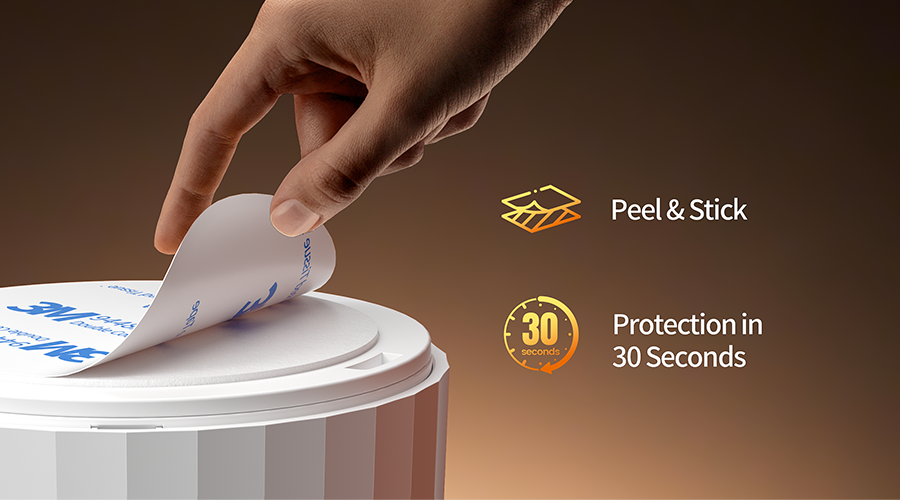

Peel & Stick - Protection in 30 Seconds

No drilling or wiring needed. Strong adhesive backing allows secure installation in seconds. Ideal for rentals, dorms, and older homes – instant safety, zero effort.
