SPECIFICATION
|
Model |
HS8OS |
|
Working Voltage |
AC220V/50Hz |
|
Detection Technology |
Microwave Radar |
|
Networking |
ZigBee |
|
Wireless Range |
≤70m(Open Indoor Area, No Obstacle) |
|
Detection Range |
≤7m |
|
Detection Angle |
360° |
|
Illuminance Measurement Range |
0~1200Lux |
|
Recommended Installation Height |
3m |
|
Installation Method |
Recessed Ceiling Mount/Surface Mount |
|
Cutout Size |
Φ60~65mm |
|
Operating Temperature |
-10°C~+55°C |
|
Operating Humidity |
≤95%RH(Non-condensing) |
|

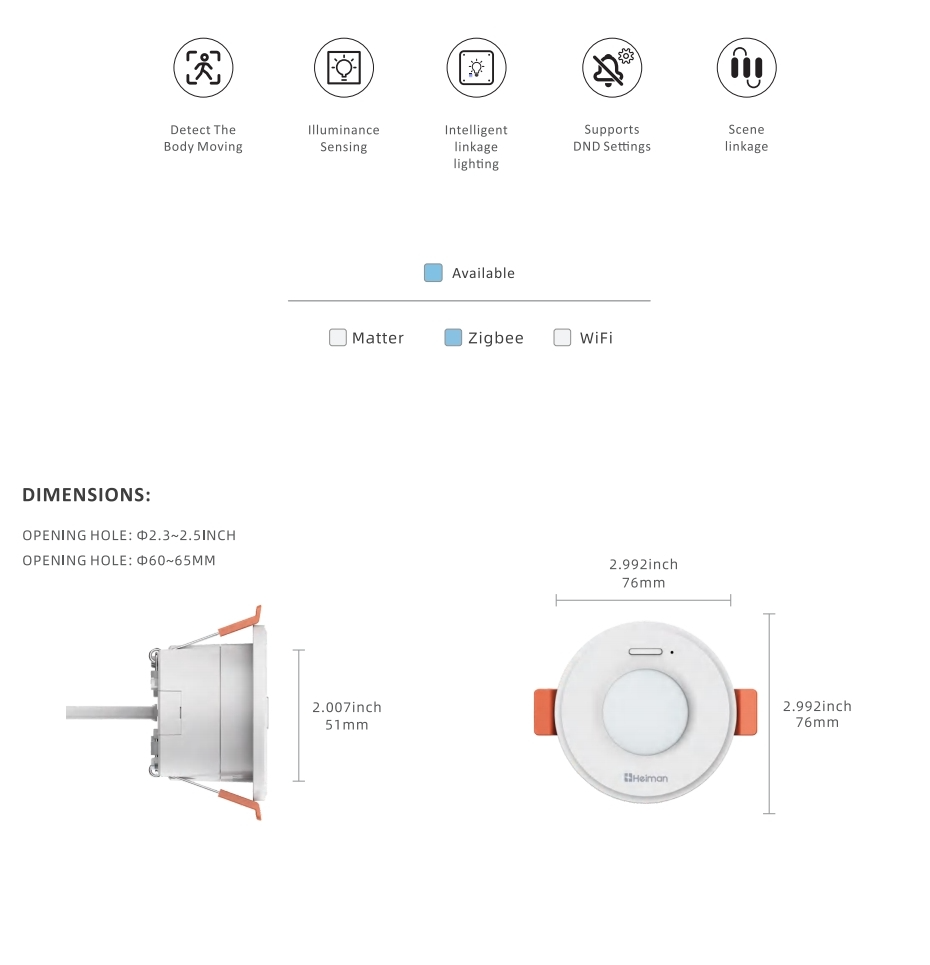

Dimensions |
Φ76×H51mm |
|
Certifications |
CE |
SPECIFICATION
| WORKING VOLTAGE100-240V AC,50/60Hz |
| DETECTION DISTANCE≤7m |
| LUMINANCE MEASUREMENT RANGE0~1200 LUX |
| DETECTING ANGLE360° |
| INSTALLATION HEIGHT3m |
| INSTALLATION METHODEmbedded in ceiling or on ceiling surface |
| WORKING TEMPERATURE-10°C~55°C |
| WORKING HUMIDITY≤95%(no condensation) |
