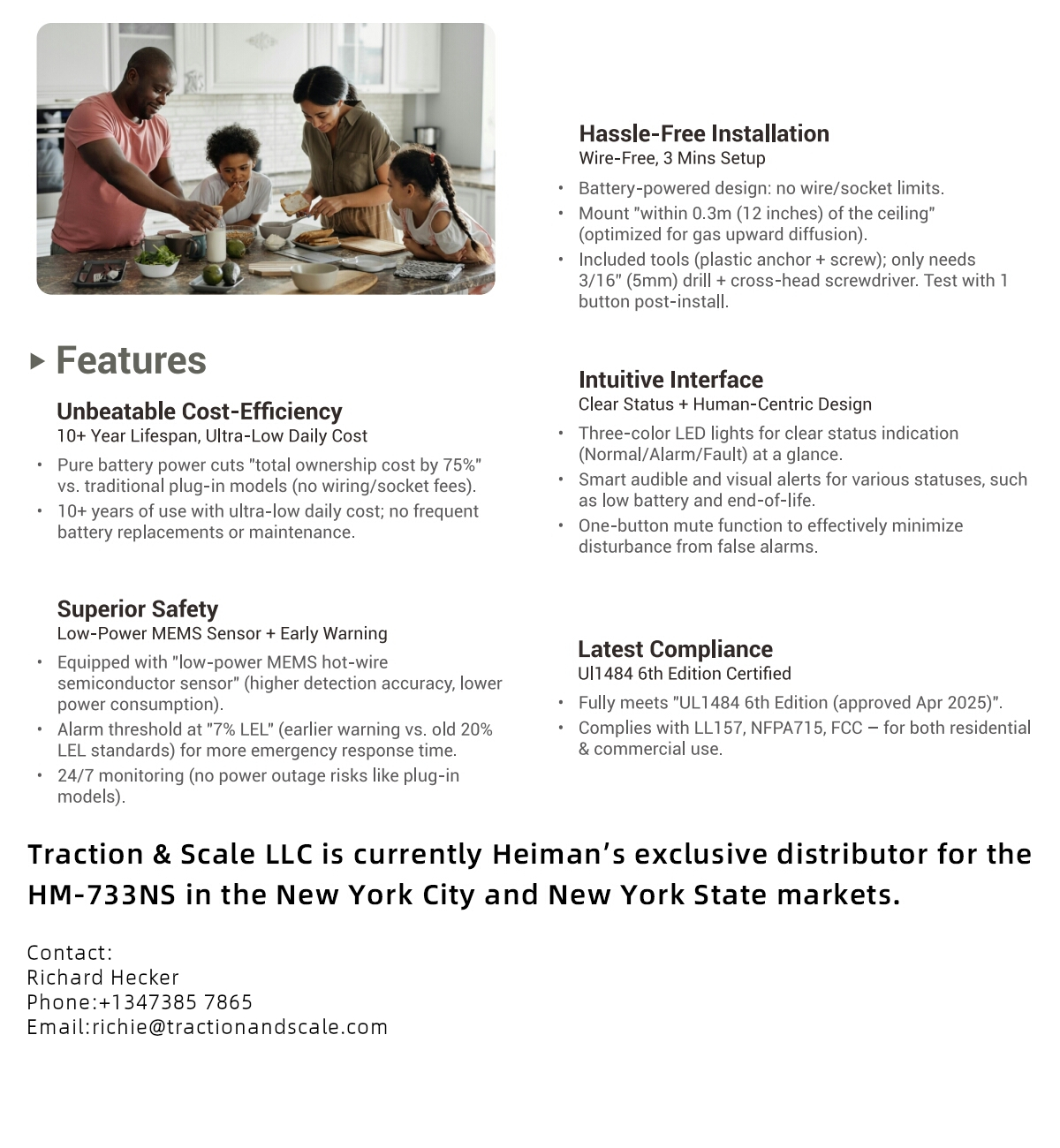

SPECIFICATION
|

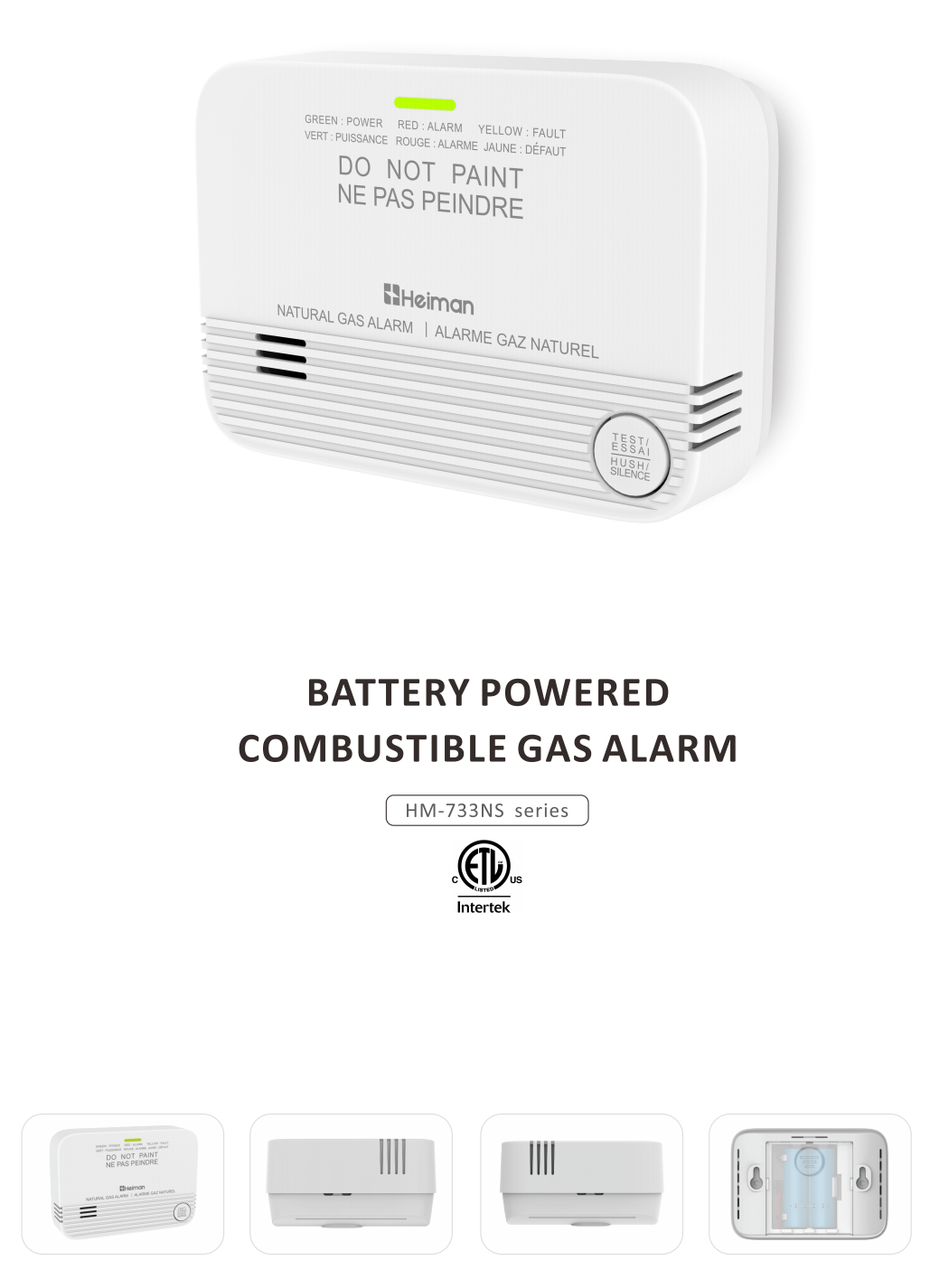

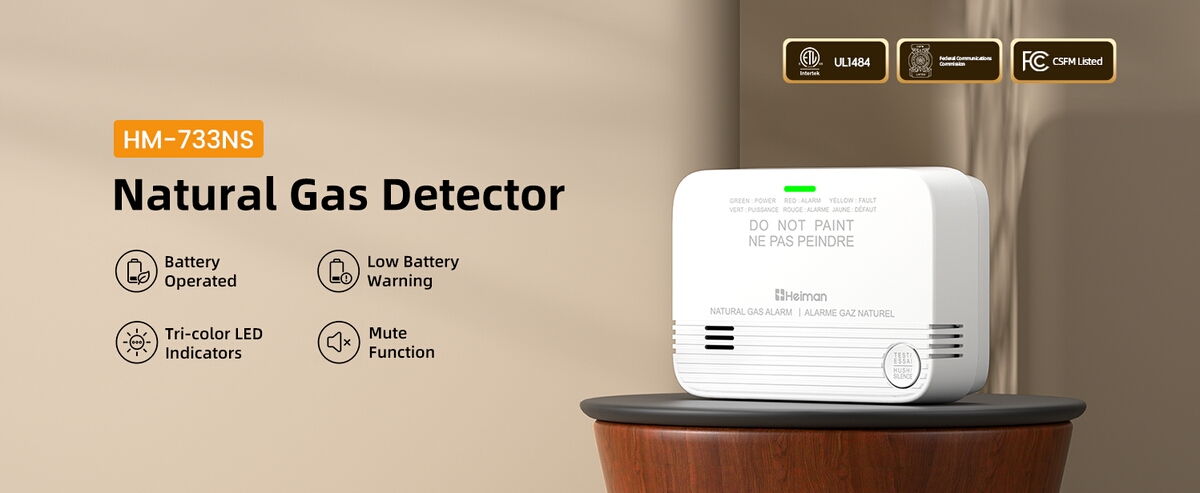

Model |
HM-733NS |
|
Power Supply |
3V Lithium Battery (Not Available at Retail Stores) |
|
Battery Life |
10 years |
|
Apparatus Lifespan |
Max. 10 years |
|

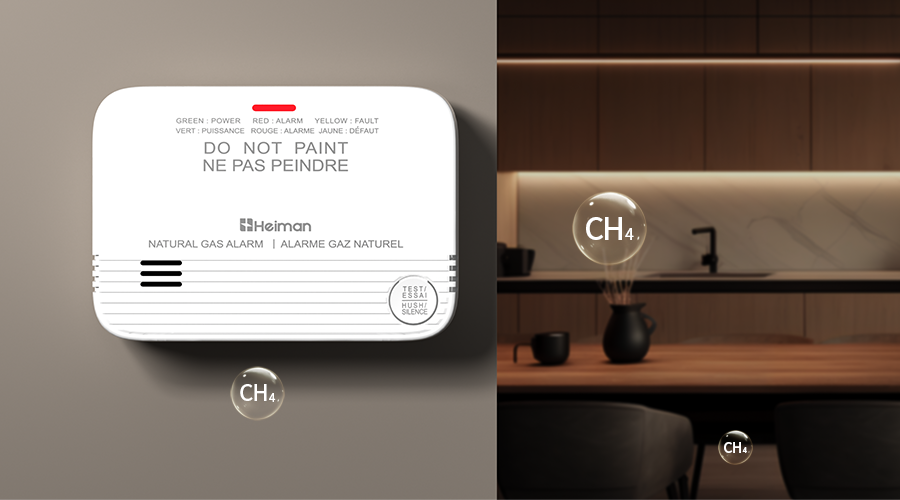

Target Gas |
Methane (Natural Gas) |
|
Sensitivity |
≤10% LEL |
|
Operating Temperature Range |
32°F (0°C) ～ 122°F (50°C) |
|
Operating Humidity Range |
5% ～ 95% RH (Non-condensing) |
|

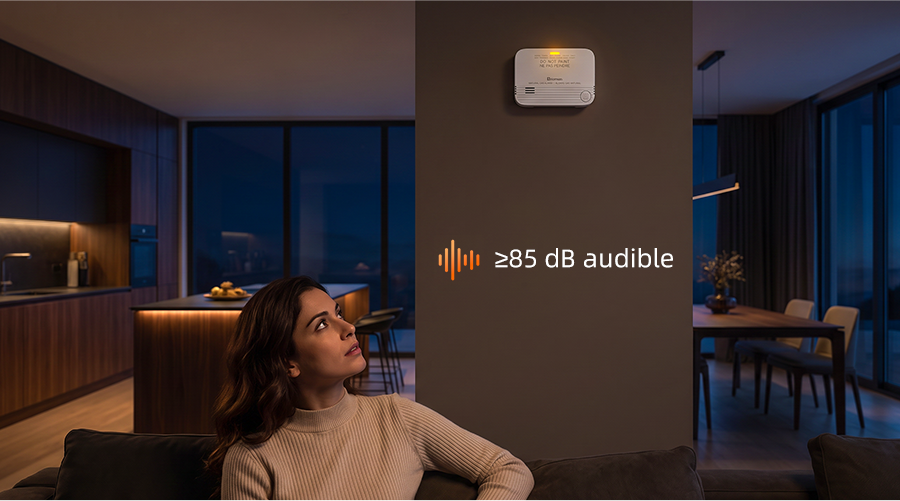

Sound Level |
≥85 dB (at 10 ft) |
|

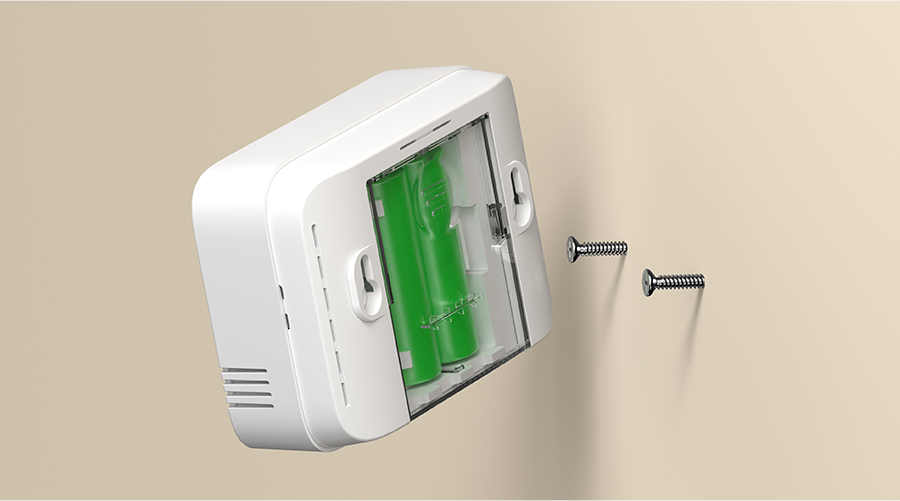

Mounting Method |
Wall Mounting |
|

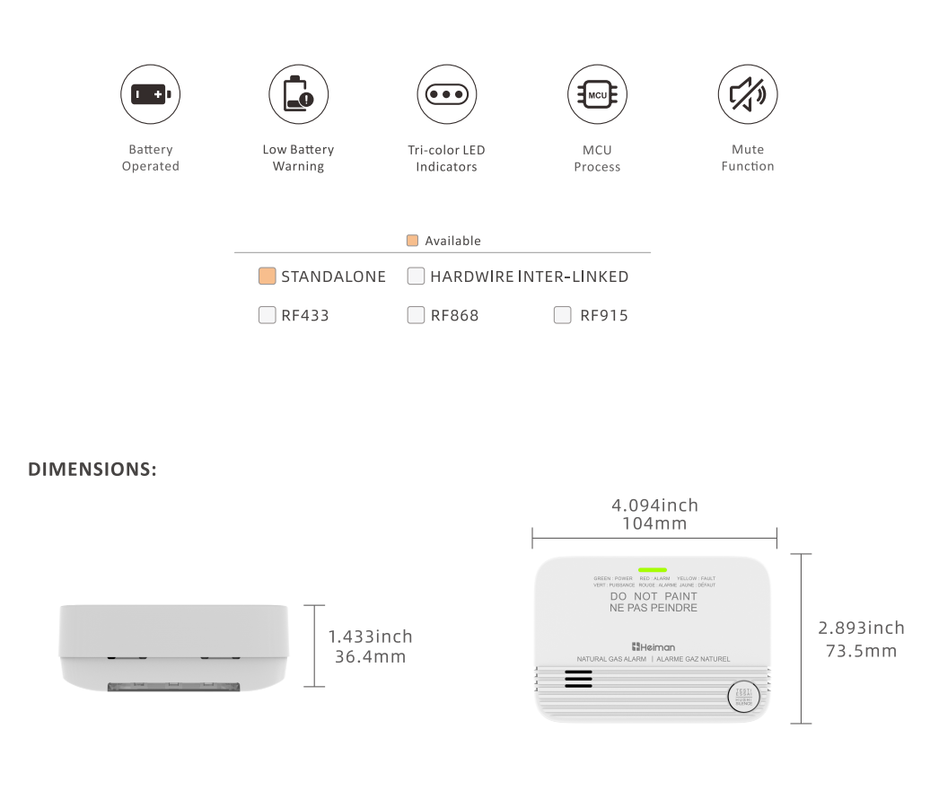

Dimensions |
W104 × H73.5 × D37.5 mm |
|
Certification |
ETL UL 1484 |
SPECIFICATION
| SENSORMEMs |
| OPERATING VOLTAGEDC 3V |
| BATTERY LIFE10 Years |
| WARM-UP TIMEAbout 3 Minutes |
| ALARM CONCENTRATION10%LEL(Natural Gas) |
| SOUND LEVEL85dB/3m |
| NORMALINDICATORGreen LED On |
| ALARMINDICATORRed LED Flash |
| FAILURELNDICATORYellow LED On |
| OPERATING TEMPERATURE0°C~+50°C |
| OPERATING HUMIDITY≤95%RH(No Condensation) |
| DIMENSIONS104*73.5*38 mm |
| CERTIFICATIONUL1484 |

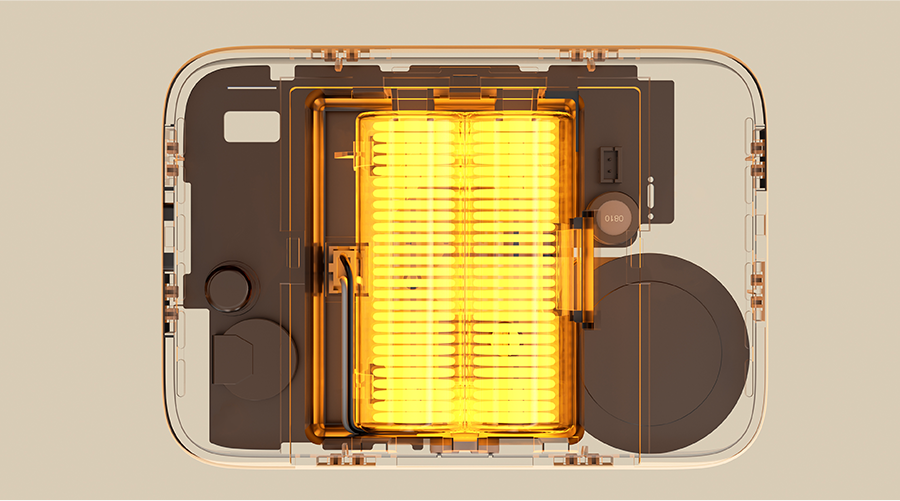

| POWER SUPPLY MODE10 years Battery Built-in |
